18 available from manufacturer (as of 9/28/2026)
119473
Alt: CES-I-AR-U-C04-USA-119473
$366.16
SAFETYSWITCH, CES-I-AR-U-C04-USA-119473
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description

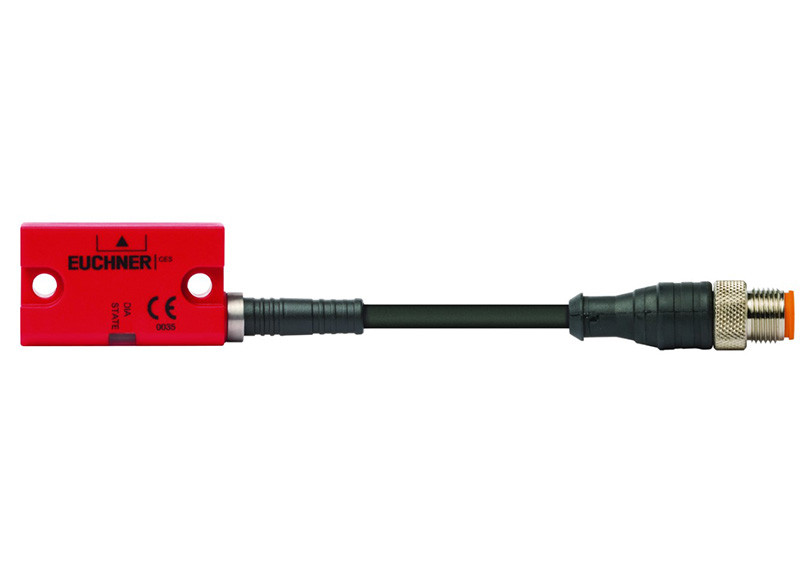

The Euchner CES-AR non-contact safety switch uses transponder coding to monitor the position of movable guards without guard locking. Evaluation electronics are integrated in the switch, and up to 20 CES-AR switches can be connected in series, making it well suited to machines with several guard doors or flaps.
Key Features
- Transponder-coded, non-contact guard monitoring without guard locking
- Integrated evaluation electronics
- Up to 20 switches can be connected in series
- Two redundant semiconductor safety outputs with internal monitoring
- Short circuit monitoring
- Three active faces for flexible mounting
- Unicode versions detect only the taught-in actuator; Multicode versions detect every suitable actuator
Certifications
- Category 4 / PL e according to EN ISO 13849-1 (both safety outputs evaluated)
