6N000021

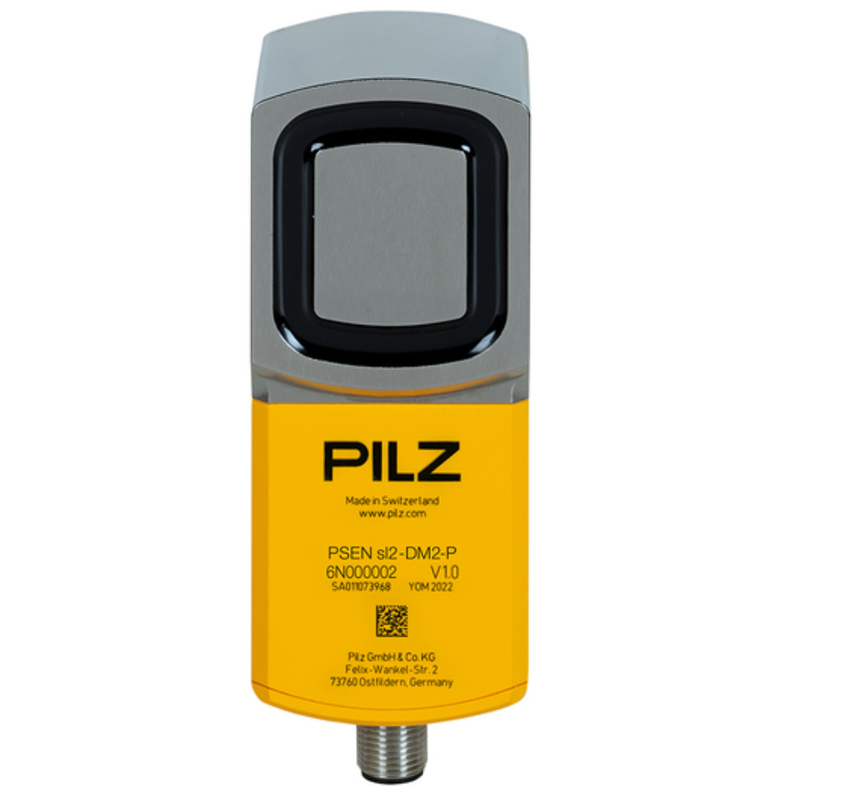

PILZ PSENslock Series electromagnetic safety locking devices provide guard locking for movable guards, swing gates, sliding gates, covers, and flaps. The PSENslock 2 generation supports process protection and personal protection applications with coded RFID safety switch technology, electromagnetic guard locking, and selectable holding-force configurations. The series includes coded, fully coded, and uniquely coded switches, 1000N and 2000N holding-force options, single or series connection variants, compatible actuators, mounting brackets, restart interlock module, and configuration key accessories.

Key Features

• Electromagnetic safety locking device series for movable guard and safety gate monitoring applications
• Supports swing gates, sliding gates, covers, and flaps in industrial machine safety applications
• PSENslock 2 supports applications up to PL e, Cat. 4 of EN ISO 13849 where specified by the selected safety architecture
• RFID coding helps provide manipulation protection for guarded machine access applications
• Available coding options include coded, fully coded, and uniquely coded versions depending on the item
• Holding-force options include 1000N and 2000N configurations depending on the switch and actuator combination
• Connection options include 5-pin, 8-pin, and 12-pin M12 male connector variants for single or series connection where specified
• Accessory options include aluminium-base actuators, stainless-steel-base actuators, mounting brackets for swing/folding gates and sliding doors, restart interlock module, and transponder configuration key
• IP67 protection is common across the listed PSENslock 2 switch configurations
• Item-specific specifications vary by protection function, coding type, holding force, connector pin count, connection style, actuator base material, output configuration, and accessory function
