6K000010

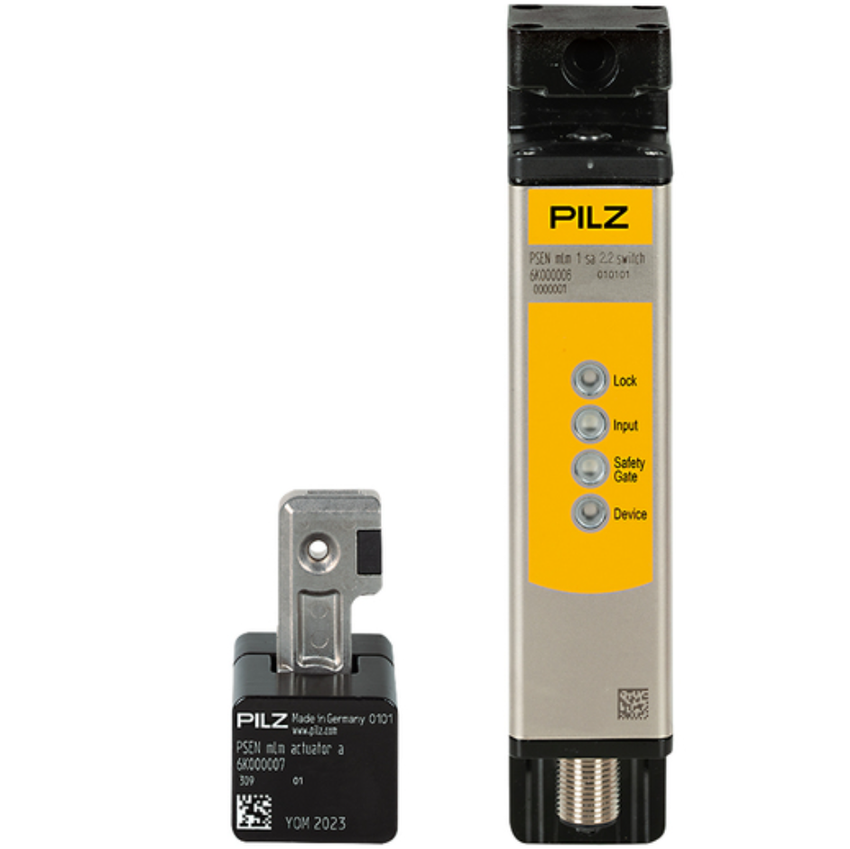

PILZ PSENmlockmini Series safety locking devices provide compact safe guard locking for small swing gates, sliding gates, flaps, and covers. The series is designed for space-critical machine guarding applications and combines coded safety switch monitoring with bistable guard locking for personal protection. PSENmlockmini products include coded, fully coded, and uniquely coded safety switches, complete switch-and-actuator units, actuator options for side or front mounting, and installation accessories for compatible guard-door applications.

Key Features

• Compact safety locking device series for small swing gates, sliding gates, flaps, and covers
• Designed for space-critical applications with a compact 30 x 30 x 159 mm housing
• Provides safe guard locking for personal protection using a bistable guard locking principle
• Holding force of FZH 1950 N and F1max 3900 N where specified by PILZ
• Available coding options include coded, fully coded, and uniquely coded versions depending on the item
• Connection options include 8-pin M12 single-connection versions and 12-pin M12 series-connection versions where specified
• Actuator options include Actuator A for side mounting/external attachment and Actuator B for front mounting/internal attachment
• Accessory options include installation sets for 30/40/45mm standard profiles and protective cover sets for switch and actuator mounting holes
• IP67 protection is common across the listed safety switch and guard-locking device configurations
• Item-specific specifications vary by coding type, connector pin count, connection style, actuator style, mounting method, included components, and accessory function
