570280

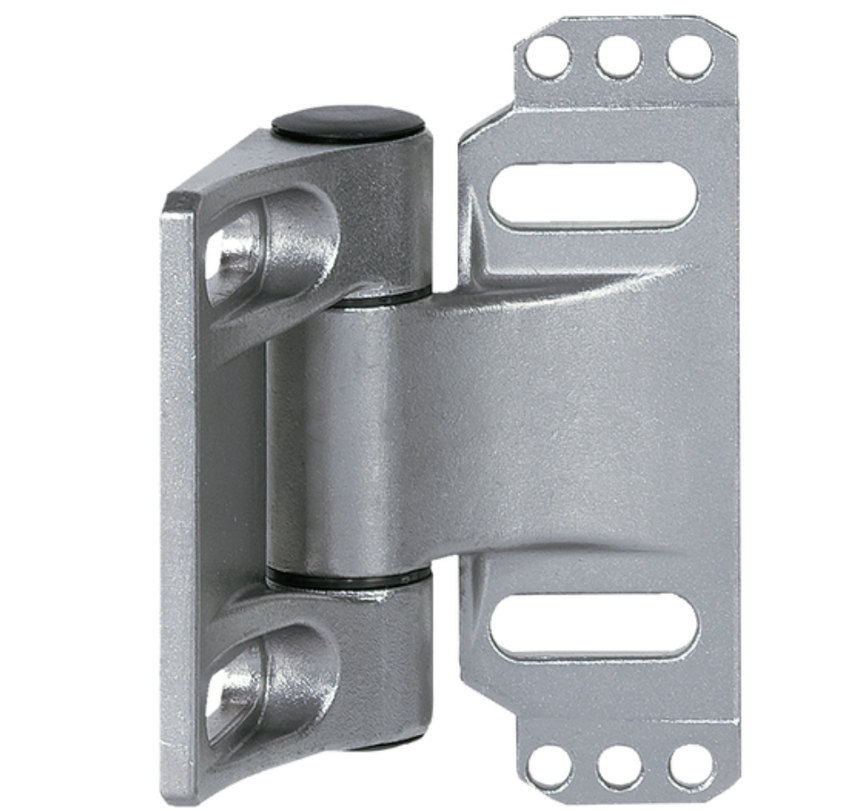

PILZ PSENhinge Series safe hinge switches combine hinge functionality with safety switch monitoring for movable guards, hinged gates, and flaps. Designed for concealed installation within the guard, PSENhinge helps reduce manipulation risk while saving installation space and supporting flexible right-hand or left-hand mounting. The series includes safe hinge switches and compatible accessories for adjustment and matching hinge installation.

Key Features

• Safe hinge switch series for monitoring movable guards, hinged gates, and flaps
• Combines hinge and safety switch functionality in one compact guard-monitoring solution
• Concealed installation within the guard helps support manipulation protection and space-saving machine design
• Available right-hand and left-hand mounting positions for flexible installation
• Switching point is adjustable from 0° to 270° and can be re-adjusted where specified by PILZ
• Safe hinge switch versions provide 2NC contacts with M12 4-pin male connection and IP67 protection where specified
• Can be used in applications up to PL e and SIL CL 3 when two switches are used in accordance with PILZ specifications
• Accessory options include a blank hinge and setting tool for compatible PSEN hs1 installations
• Item-specific specifications vary by mounting position, contact configuration, connector style, accessory function, and protection rating
