524124

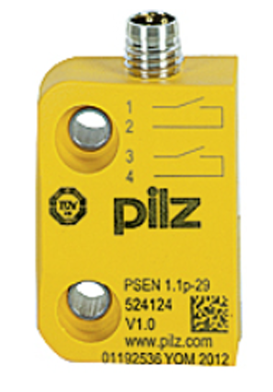

Alt: PSEN 1.1p-29/7mm/ix1/ 1 switch
Magnetic Safety Switch, 2NO/1NC, 4-Pin M8 Male Connector, Square Design, Operating Distance 7mm, 0.5mm Latched Zone Special Version, TÜV/EAC/UL/ECOLAB Approved, IP67, Actuator Must be Purchased Separately
- Weight:
- 0.04 LBS
- Minimum Purchase:
- 1 unit
PILZ PSENmag Series non-contact magnetic safety switches provide cost-effective guard and position monitoring for industrial machine safety applications. The series uses magnetic sensing to monitor movable guards, covers, flaps, and machine positions in accordance with EN 60947-5-3, helping reduce mechanical wear while supporting reliable integration with compatible Pilz evaluation devices and controllers.
Key Features
- Non-contact magnetic safety switch series for guard-door and position monitoring applications
- Used to monitor the position of guards in accordance with EN 60947-5-3 and for general position monitoring
- Cost-effective sensor and controller solution when used with compatible Pilz evaluation devices
- Available configurations include square, round, cylindrical, stainless-steel, LED, ATEX-approved, and cable or connector versions where specified
- Selected variants support series connection or connection to electronic and electromechanical relay evaluation devices where specified
- Non-contact operation helps reduce mechanical wear and supports long service life
- Protection ratings include IP67, IP6K9K, and IP69 depending on the item configuration
- Accessory options include actuators, mounting brackets, spacers, reverse mounting plates, interface modules, one-way screws, and tamper-proof inserts
- Item-specific specifications vary by housing design, contact configuration, connector or cable type, operating distance, actuator requirement, LED indication, ATEX approval, interface compatibility, and protection rating
