Ships from manufacturer in ~56 days (as of 7/21/2026)
174313
Alt: CET3-AR-CRA-AH-50F-SH-C2375-174313
$1,468.03

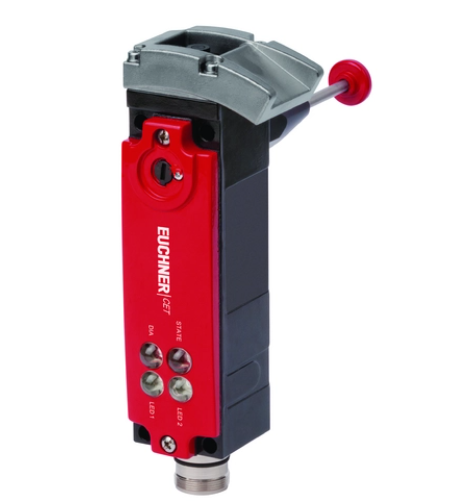

Non-contact Safety Switch, Closed-Circuit, Unicode, Monitoring Output Guard Locking OUT / Door Position OUT D, M23 (RC18) Plug Connector 19-Pole, Escape Release 105 mm Long
- Weight:
- 3.67 LBS
- Minimum Purchase:
- 1 unit
Description
The Euchner CET series transponder-coded safety switch with guard locking is built for guards and heavy doors that need a very high locking force. Integrated evaluation electronics mean no separate evaluation unit is required, and the switch reaches Category 4/PL e according to EN ISO 13849-1. AR versions can be connected in series with other Euchner AR devices, while AP versions are used as individual devices.
Key Features
- Transponder-coded safety switch with guard locking
- Locking force up to 6,500 N
- Integrated evaluation electronics; no separate evaluation unit required
- Two semiconductor safety outputs with short circuit monitoring
- CET1/CET3 closed-circuit current principle; CET2/CET4 open-circuit current principle
- AR versions: series connection of up to 20 AR devices such as CES-AR, CET-AR and MGB-AR
- Available in Unicode and Multicode versions
Certifications
- Category 4 / PL e according to EN ISO 13849-1
