173223
Ships from manufacturer in ~42 days (as of 7/21/2026)
Euchner

173223

Alt: CTM-L2-BR-M-ZZ-V15-P-173223

$936.54

Transponder Coded Safety Switch, Open-Circuit, Guard Locking for Process Protection, Multicode, Door Position Monitoring Output/Communication OD/C, PVC Connection Cable 15 m Length Flying Lead, Hygienic Version

Weight:
2.33 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

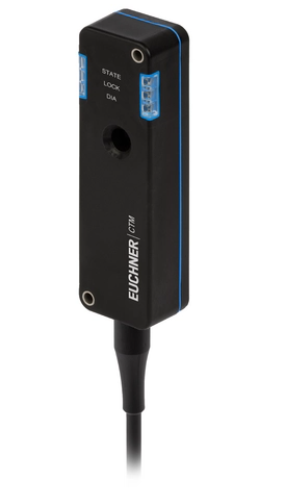

Compact Euchner CTM transponder-coded guard locking switch, BiState, IO-Link ready
Description

The Euchner CTM series transponder-coded safety switch with guard locking secures safety doors in a compact device designed for connection to BP/BR safety systems and IO-Link communication via Euchner gateways. BiState versions use bistable guard locking operated by an input signal, which prevents people from unintentionally locking themselves inside if the door is open during a power failure and prevents activated guard locking from being released by a power failure. BR versions can be integrated into a BR device chain.

Key Features

  • Transponder-coded safety switch with guard locking
  • BiState (bistable) guard locking on LBI and CBI versions; open-circuit versions with guard locking for process protection
  • BiState versions: locking force Fmax 1,300 N
  • BR versions can be integrated into a BR device chain for series connection
  • Communication functions in combination with an IO-Link gateway GWY-CB or ESM-CB
  • FlexFunction versions are configured by the function actuator used
  • Operating voltage 24 V DC
  • Unicode, Multicode and highly coded versions available

Certifications

  • Category 4 / PL e according to EN ISO 13849-1 (guard lock monitoring)
