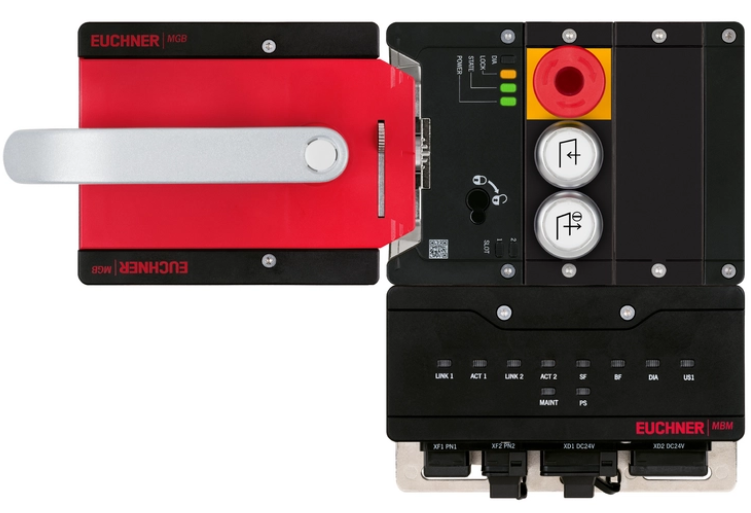

The Euchner MGB2 Modular MGB2-.HB-PN complete set brings multifunctional gate box door guarding onto PROFINET. It combines the MGB2 Modular interlocking or locking function with a bus module that provides a PROFINET/PROFIsafe interface, so door status, guard locking and the operator controls on the door are exchanged with the safety control system over the network. The integrated switch supports linear network topology, allowing series wiring of both the bus and the power supply.
Key Features
Complete set for safety door guarding with PROFINET/PROFIsafe connection
Available as interlocking sets (I) or guard locking sets (L1 closed-circuit, L2 open-circuit current principle)
Integrated switch for linear network topology with MRP support
PROFINET connection via M12 D-coded or RJ45 push-pull plug connector, depending on version
Operator controls such as E-stop and illuminated pushbuttons integrated on the door, depending on version
Door stop can be changed from right to left
Part of the MGB2 Modular system; compatible with all MGB2 Modular devices
