170801
Alt: STP4A-2131A024SM8C2627

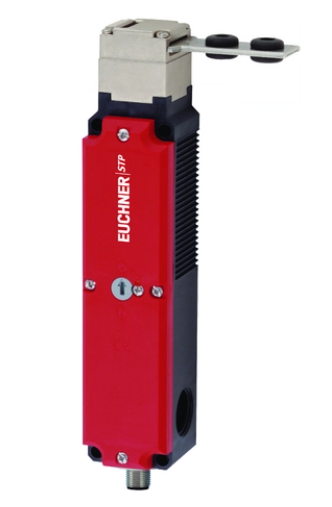

Safety Switch STP with door monitoring contact Actuating head made of metal;Auxiliary release on the front;With door monitoring contact;Plug connector M12, 8-pin
- Weight:
- 1.24 LBS
- Minimum Purchase:
- 1 unit
The Euchner STP safety switch with guard locking is based on the plastic-encapsulated TP but adds a metal actuating head and internal metal cam for applications that require high locking forces of up to 2,500 N. It uses a switching element with four contacts in various combinations of positively driven and NO contacts, and dual-channel wiring for the maximum possible safety level is possible on all variants. Its switching contacts can switch a minimum current of 1 mA, so it is also suitable for use with safe control systems.
Key Features
- Guard locking with locking force up to 2,500 N
- Metal actuating head and internal metal cam
- Switching element with 4 switching contacts; dual-channel wiring possible on all variants
- Door monitoring contact and auxiliary release on the front, depending on version
- Physically compatible with Euchner TP and STA safety switches
- Solenoid operating voltage 24 V AC/DC on A024 versions
