Ships from manufacturer in ~56 days (as of 7/21/2026)
165701
Alt: MGB2-IHE-BR-U-S0-LY-R-165701
$2,066.20

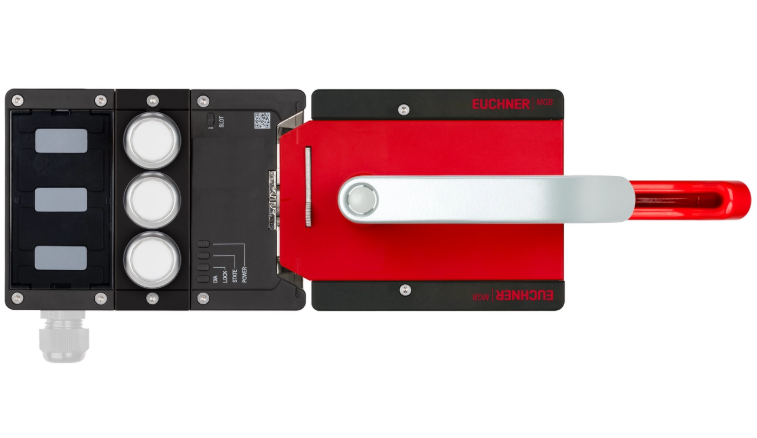

Complete set MGB2-IHE...-BR, Interlocking w/o Guard Locking, Closed-Circuit, 3 Illuminated Pushbuttons, M20 x 1.5 Cable Entry (Gland Sold Separately), Adj. Hinge: Right, Unicode
- Weight:
- 7.11 LBS
- Minimum Purchase:
- 1 unit
Description
The Euchner MGB2 Classic interlocking module monitors safety doors on machines and systems without guard locking, wired directly to the control system rather than through a fieldbus. Its evaluation module is configured with DIP switches to operate as an MGB2-BP individual device or as an MGB2-BR device for series connection, and the door stop can be changed between left and right hinging at any time.
Key Features
- Interlocking without guard locking for safety door position monitoring
- Direct connection to a control system without a bus module
- Evaluation module configurable by DIP switches to behave as an MGB2-BP or MGB2-BR device
- Series connection in a BR switch chain when configured as BR
- Operating voltage 24 V DC, reverse polarity protected; short circuit-proof safety outputs
- Door stop can be changed from right to left at any time
- Connection submodules available with M20 x 1.5 cable entry, M12 or M23 plug connector
- Used with MGB2-H handle modules; MSM submodules add E-stop, pushbuttons and other control elements
