157955
Alt: MGB2-I-MLI-U-Y0000-JJ-157955
Locking Module MGB2-I-MLI...Interlocking Without Guard Locking, Module MGB2 For Connections to a Bus Module MBM, Category 4/PL e, Open Version Without Blanking Covers, Unicode, Adjustable Door Hinge
- Weight:
- 2.23 LBS
- Minimum Purchase:
- 1 unit

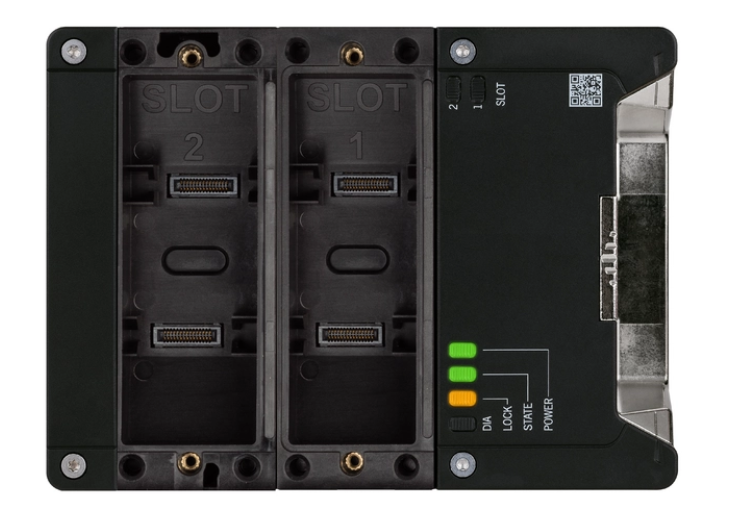

The Euchner MGB2 Modular MGB2-I-MLI interlocking module monitors safety doors on machines and systems as part of the MGB2 Modular multifunctional gate box system. It provides interlocking without guard locking and connects to an MBM bus module over an M12 connection; the bus module collects all data and communicates with the control system via fieldbus. Combined with an MGB2 handle module, the safety door becomes a movable guard with an interlocking device according to EN ISO 14119.
Key Features
- Interlocking without guard locking for safety door position monitoring
- Space for up to two MSM submodules, such as E-stop and pushbuttons, to build a control terminal on the door
- Door stop can be changed from right to left at any time
- M12 connection to the MBM bus module for fieldbus communication
- Compatible with all MGB2 Modular devices
Certifications
- Category 4 / PL e for the evaluation of all safety functions
- EN ISO 14119
