Ships from manufacturer in ~56 days (as of 9/28/2026)
157022
Alt: MGB2-H-BA1A8-L-157022
$757.67
Handle module MGB2-H...Intelligent Bolt Tongue, Fold-Out Lockout Mechanism, Second Automatically Extending Lockout Mechanism, Lockable From Inside, Door Handle, Non-Adjustable Door Hinge: Left
- Weight:
- 3.11 LBS
- Minimum Purchase:
- 1 unit
Description

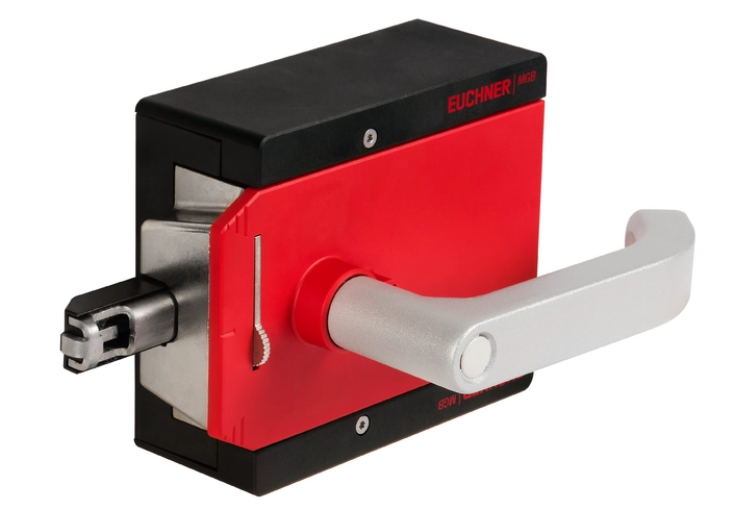

The Euchner MGB2-H handle module is the door-side component of the Euchner MGB2 multifunctional gate box system. It mounts on the movable guard and carries the bolt tongue, which is detected by a transponder as soon as it is inserted into the evaluation module on the machine side. The handle module is ordered as a replacement or system component rather than as a complete safety device.
Key Features
- Handle module for the Euchner MGB2 gate box system
- Intelligent bolt tongue detected by transponder in the MGB2 evaluation module
- Fold-out lockout mechanism: the bolt tongue can be blocked with up to 3 padlocks for cleaning and service work
- Second automatically extending lockout mechanism depending on model
- Door handle or door knob depending on model; door-handle versions can be equipped or retrofitted with a door knob
- Adjustable door hinge with factory setting right or left, depending on model
- Fiber glass reinforced plastic and nickel-plated die-cast zinc housing
- IP65 degree of protection
