126638
Alt: MGB-L1HB-EIA-L-126638

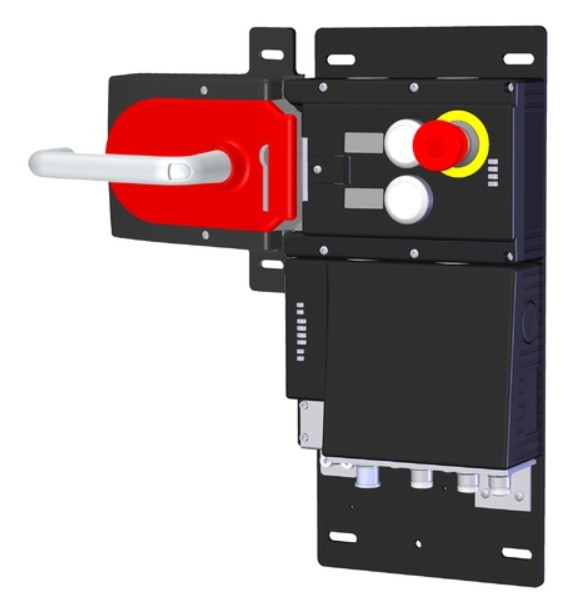

Locking set MGB-L1...-EI Spring Force Guard Locking With Guard Lock Monitoring, Emergency Stop, 2 Illuminated Pushbuttons, M12 Plug Connection, Pre-assembled on Mounting Plates, Unicode
- Weight:
- 13.14 LBS
- Minimum Purchase:
- 1 unit
The Euchner MGB EtherNet/IP multifunctional gate box is a transponder-coded guard locking system for protecting safety doors on machines and installations. The MGB system combines the safety switch, handle and bolt, and its modular design lets the interlocking or locking module become a small operator panel with E-stop, pushbuttons and other controls. The EtherNet/IP version uses the CIP Safety protocol and an integrated EtherNet/IP switch; the MGB supplies the protocol frame with the required CIP Safety input and output bytes, and diagnostic information is provided as EtherNet/IP messages. Simple parameter setting means a replacement during service takes only a few minutes.
Key Features
- Guard locking by spring force, released by solenoid force (closed-circuit current principle, mechanically locked)
- CIP Safety protocol over EtherNet/IP with integrated EtherNet/IP switch
- Connection via M12 plug connectors
- Detailed diagnostics as EtherNet/IP messages
- Simple parameter setting for fast replacement during service
- Handle module and interlocking/locking module form the basic system, with integrated lockout mechanism
- Transponder technology up to PL e according to EN ISO 13849-1
- Optimized for mounting on profiles, with alignment tolerance of ±4 mm in x and ±5 mm in z direction
- Diagnostics via 4 status LEDs
- Stable metal stop prevents damage when the bolt tongue is extended
- Optional escape release with door handle; optional pushbuttons and indicators integrated in the housing
- Degree of protection up to IP65
Certifications
- Complies with EN ISO 14119
- ODVA conformance tested for CIP Safety
