121860
Alt: MGB-L2HB-PNA-R-121860

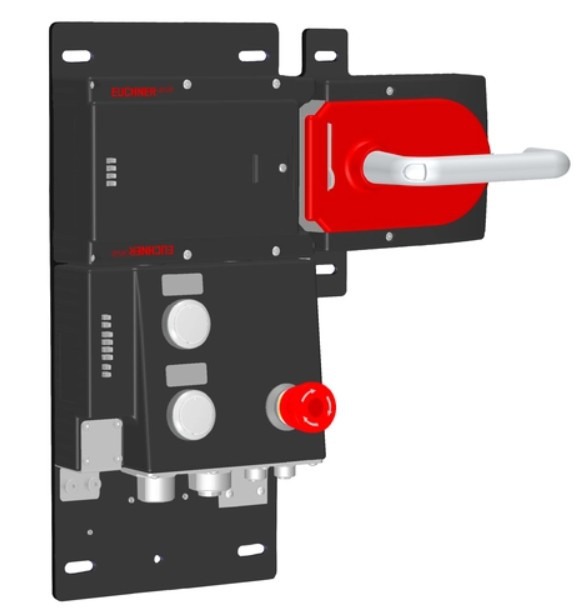

Locking Set MGB-L2...-PN...Solenoid Force Guard Locking, Emergency Stop, 2 Illuminated Pushbuttons, Pre-assembled on Mounting Plates, Connection via 7/8" and M12 Plugs, Profinet RT, Unicode
- Weight:
- 11.30 LBS
- Minimum Purchase:
- 1 unit
The Euchner MGB-PN multifunctional gate box is a transponder-coded guard locking system for protecting safety doors on machines and installations. The MGB system combines the safety switch, handle and bolt, and its modular design lets the interlocking or locking module become a small operator panel with E-stop, pushbuttons and other controls. The PN version communicates over PROFINET with PROFIsafe, and an integrated PROFINET RT switch allows point-to-point network topology. Depending on how the control system evaluates the safe device data, the MGB-PN can be used for interlocking or guard locking.
Key Features
- Guard locking by solenoid force, released by spring force when the solenoid is switched off (open-circuit current principle, electrically locked)
- PROFINET (IEC 61158 type 10) bus protocol with PROFIsafe (IEC 61784-3-3) safety protocol
- Integrated PROFINET RT switch
- Connection via push-pull plugs (IEC 61076-3-117) or 7/8" and M12 D-coded plugs, depending on version
- Pre-assembled on mounting plates, depending on version
- Handle module and interlocking/locking module form the basic system, with integrated lockout mechanism
- Transponder technology up to PL e according to EN ISO 13849-1
- Optimized for mounting on profiles, with alignment tolerance of ±4 mm in x and ±5 mm in z direction
- Diagnostics via 4 status LEDs
- Stable metal stop prevents damage when the bolt tongue is extended
- Optional escape release with door handle; optional pushbuttons and indicators integrated in the housing
- Degree of protection up to IP65
Certifications
- Complies with EN ISO 14119
