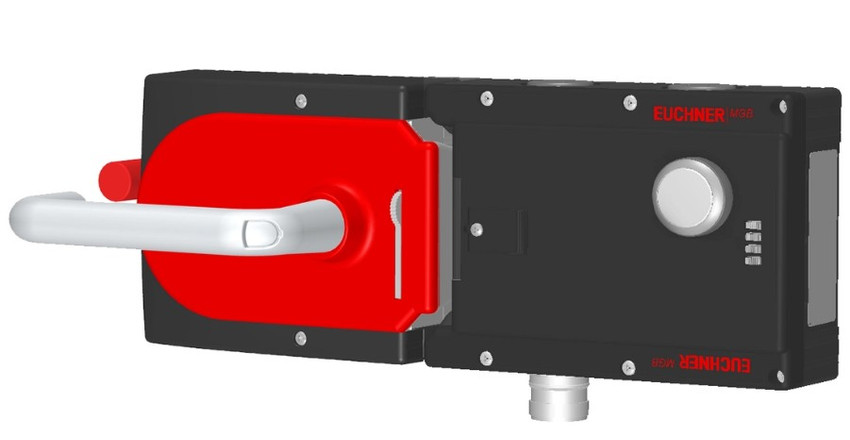

Locking set MGB-L1HE-ARA..., Spring Force Guard Locking, Can be Connected in Series With Other AR Devices, Emergency Stop, 1 Illuminated Pushbutton, 6pc Lens Set, RC18 Plug Connector, Escape Release, Unicode
SKU:
121040
Weight:
6.50 LBS
Minimum Purchase:
1 unit
Monitor multiple machine safety doors in one safety circuit.
The Euchner MGB-AR multifunctional gate box is a transponder-coded guard locking system for protecting safety doors on machines and installations. The MGB system combines the safety switch, handle and bolt, and its modular design lets the interlocking or locking module become a small operator panel with E-stop, pushbuttons and other controls. In the AR system family, the MGB can be connected in series with other Euchner AR devices such as CES-AR and CET-AR, so several guards can share one safety circuit.
Key Features
Guard locking by spring force, released by solenoid force (closed-circuit current principle, mechanically locked)
Series connection with other AR devices (e.g., CES-AR, CET-AR) in an AR chain of up to 20 devices
Handle module and interlocking/locking module form the basic system, with integrated lockout mechanism
Transponder technology up to PL e according to EN ISO 13849-1
Optimized for mounting on profiles, with alignment tolerance of ±4 mm in x and ±5 mm in z direction
Diagnostics via 4 status LEDs
Stable metal stop prevents damage when the bolt tongue is extended
Optional escape release with door handle; optional pushbuttons and indicators integrated in the housing
