115139
Alt: MGB-L1HB-PNC-L-115139

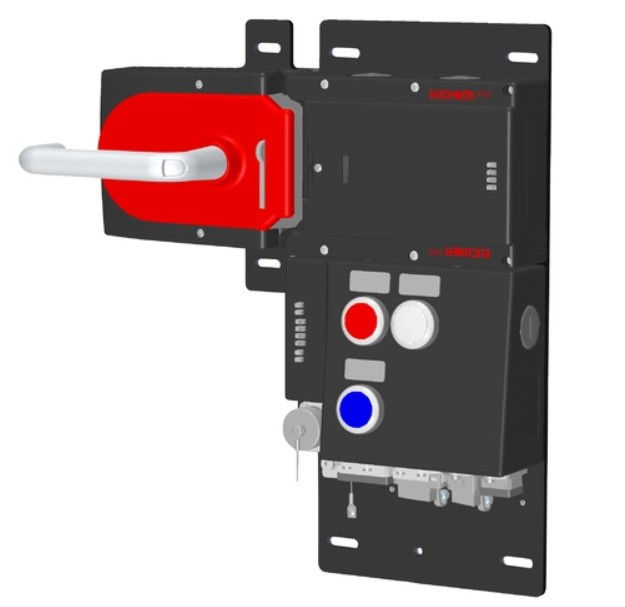

Locking set MGB-L1...-PN... Spring Force Guard Locking, 3 Illuminated Pushbuttons, Push-Pull Plug, Terminal Plug RC12 For Enabling Switch, Pre-assembled on Mounting Plates, Profinet RT Switch, Multicode
- Weight:
- 6.69 LBS
- Minimum Purchase:
- 1 unit
The Euchner MGB-PN multifunctional gate box is a transponder-coded guard locking system for protecting safety doors on machines and installations. The MGB system combines the safety switch, handle and bolt, and its modular design lets the interlocking or locking module become a small operator panel with E-stop, pushbuttons and other controls. The PN version communicates over PROFINET with PROFIsafe, and an integrated PROFINET RT switch allows point-to-point network topology. Depending on how the control system evaluates the safe device data, the MGB-PN can be used for interlocking or guard locking.
Key Features
- Guard locking by spring force, released by solenoid force (closed-circuit current principle, mechanically locked)
- PROFINET (IEC 61158 type 10) bus protocol with PROFIsafe (IEC 61784-3-3) safety protocol
- Integrated PROFINET RT switch
- Connection via push-pull plugs (IEC 61076-3-117) or 7/8" and M12 D-coded plugs, depending on version
- Pre-assembled on mounting plates, depending on version
- Handle module and interlocking/locking module form the basic system, with integrated lockout mechanism
- Transponder technology up to PL e according to EN ISO 13849-1
- Optimized for mounting on profiles, with alignment tolerance of ±4 mm in x and ±5 mm in z direction
- Diagnostics via 4 status LEDs
- Stable metal stop prevents damage when the bolt tongue is extended
- Optional escape release with door handle; optional pushbuttons and indicators integrated in the housing
- Degree of protection up to IP65
Certifications
- Complies with EN ISO 14119
