Ships from manufacturer in ~56 days (as of 10/30/2026)
114712
Alt: CET4-AR-CDA-CH-50X-SG-114712
$1,134.53
Transponder-Coded Safety Switch With Guard Locking, RFID, Open-Circuit Principal, Guard Monitoring Output D, Output Door Position OUT D, 2 x Plug Connector M12 5-Pin and 8-Pin, Multicode
- Weight:
- 2.78 LBS
- Minimum Purchase:
- 1 unit
Description

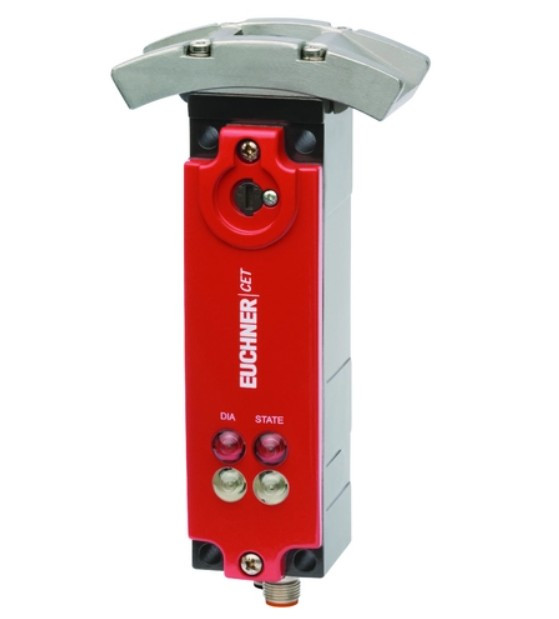

The Euchner CET series transponder-coded safety switch with guard locking is built for guards and heavy doors that need a very high locking force. Integrated evaluation electronics mean no separate evaluation unit is required, and the switch reaches Category 4/PL e according to EN ISO 13849-1. AR versions can be connected in series with other Euchner AR devices, while AP versions are used as individual devices.
Key Features
- Transponder-coded safety switch with guard locking
- Locking force up to 6,500 N
- Integrated evaluation electronics; no separate evaluation unit required
- Two semiconductor safety outputs with short circuit monitoring
- CET1/CET3 closed-circuit current principle; CET2/CET4 open-circuit current principle
- AR versions: series connection of up to 20 AR devices such as CES-AR, CET-AR and MGB-AR
- Available in Unicode and Multicode versions
Certifications
- Category 4 / PL e according to EN ISO 13849-1
