114650
Alt: CET4-AR-CRA-CH-50F-SG-114650
Transponder-Coded Safety Switch With Locking Guard, RFID, Open-Circuit Principal, Monitoring Output Guard OUT, Door Output Position OUT D, 2 x M12 Connector 5-Pin and 8-Pin, Escape Release, Multicode
- Weight:
- 3.05 LBS
- Minimum Purchase:
- 1 unit

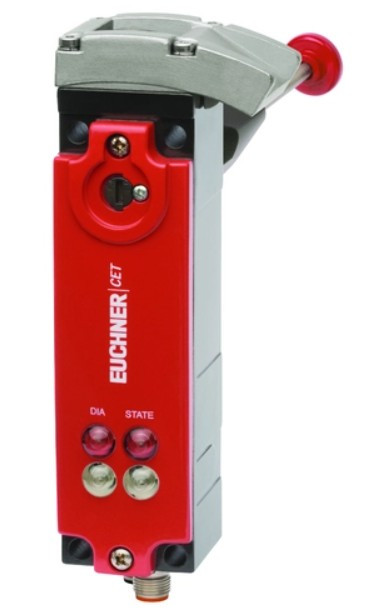

The Euchner CET series transponder-coded safety switch with guard locking is built for guards and heavy doors that need a very high locking force. Integrated evaluation electronics mean no separate evaluation unit is required, and the switch reaches Category 4/PL e according to EN ISO 13849-1. AR versions can be connected in series with other Euchner AR devices, while AP versions are used as individual devices.
Key Features
- Transponder-coded safety switch with guard locking
- Locking force up to 6,500 N
- Integrated evaluation electronics; no separate evaluation unit required
- Two semiconductor safety outputs with short circuit monitoring
- CET1/CET3 closed-circuit current principle; CET2/CET4 open-circuit current principle
- AR versions: series connection of up to 20 AR devices such as CES-AR, CET-AR and MGB-AR
- Available in Unicode and Multicode versions
Certifications
- Category 4 / PL e according to EN ISO 13849-1
