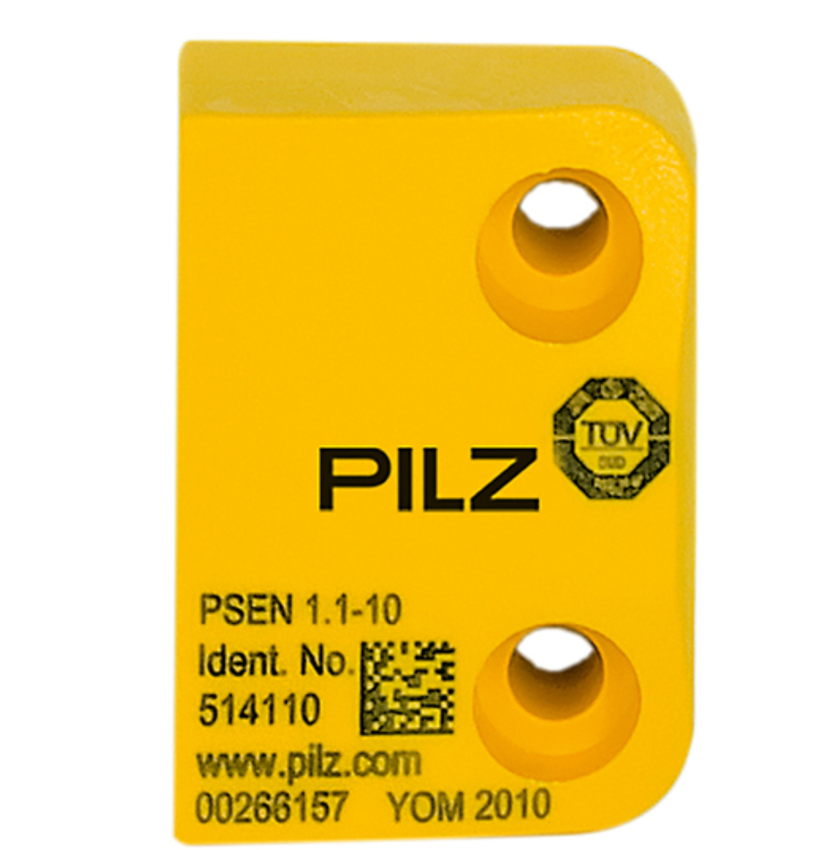

PILZ PSENmag Series non-contact magnetic safety switches provide cost-effective guard and position monitoring for industrial machine safety applications. The series uses magnetic sensing to monitor movable guards, covers, flaps, and machine positions in accordance with EN 60947-5-3, helping reduce mechanical wear while supporting reliable integration with compatible Pilz evaluation devices and controllers.
Key Features
Non-contact magnetic safety switch series for guard-door and position monitoring applications
Used to monitor the position of guards in accordance with EN 60947-5-3 and for general position monitoring
Cost-effective sensor and controller solution when used with compatible Pilz evaluation devices
Available configurations include square, round, cylindrical, stainless-steel, LED, ATEX-approved, and cable or connector versions where specified
Selected variants support series connection or connection to electronic and electromechanical relay evaluation devices where specified
Non-contact operation helps reduce mechanical wear and supports long service life
Protection ratings include IP67, IP6K9K, and IP69 depending on the item configuration
Accessory options include actuators, mounting brackets, spacers, reverse mounting plates, interface modules, one-way screws, and tamper-proof inserts
Item-specific specifications vary by housing design, contact configuration, connector or cable type, operating distance, actuator requirement, LED indication, ATEX approval, interface compatibility, and protection rating
RFID Safety Switch, 2 Safe SC Outputs, Male Connector M12 5-Pin, for Applications Up to SIL 3 or PL e, Typ. Operatingdistance 11mm, Assured Operating Distance 8mm, Assured Release Distance 20mm, IP67, Includes 1 Coded Switch and 1 Actuator
