7 available from manufacturer (as of 10/12/2026)
159951
Alt: BTM-UNIP-S-TH-00-X-159951
$349.43
Bolt BTM-UNIP-S... for safety Switches TP, STP, STA, CTP and CTA Steel bolt;For doors hinged on the left or right;Can be locked in open position with padlocks;Actuator not included
- Weight:
- 5.14 LBS
- Minimum Purchase:
- 1 unit
Description

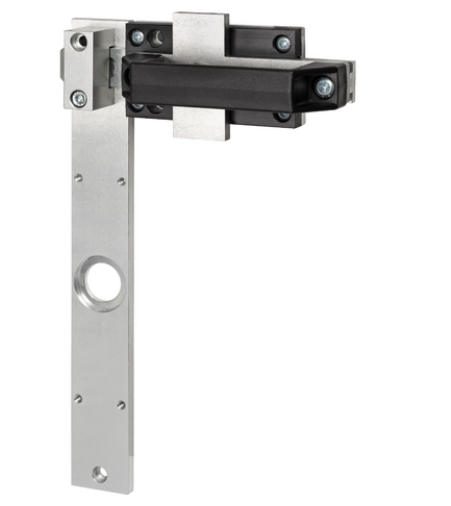

The Euchner BTM-UNIP bolt is a robust steel door bolt for Euchner TP, STP, STA, CTP and CTA safety switches. It mounts to standard aluminum profiles and machine covers by screw connection and needs no additional door handle.
Key Features
- Steel bolt for Euchner safety switches TP, STP, STA, CTP and CTA
- For doors hinged on the left or right
- Can be locked in the open position with padlocks
- No additional door handle necessary
- Easily mounted to standard aluminum profiles and machine covers
- Escape release version available depending on model
- Actuator not included; order safety switch and actuator separately
- With CTP-...-EX switches, usable in ATEX zone 2/22 atmospheres
