100016

Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.



Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Features Include:

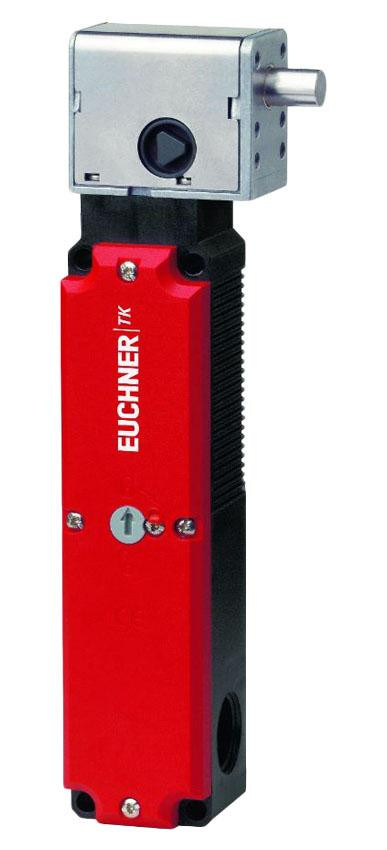

• Mounting on plastic housing TP with actuating head and locking pin made of metal
• High locking forces of 5,000 N
• Auxiliary release on the switch head
• Switching principle: Slow-action switching contact
• Connection cross-section: 0.34 - 1.5 mm²
• Power consumption: 8 W
• Rated impulse withstand voltage Uimp: 2.5 kV
• Rated insulation voltage Ui: 250 V
• Short circuit protection according to IEC 60269-1: 4A gG
• Solenoid duty cycle: 100 %
• Solenoid operating voltage: AC 230 V -15% - +10%
• Switching current min. at 24 V: 1 mA
• Switching voltage min. at 10 mA: 12 V
• Thermal rated current Ith: 4 A
• Utilization category: DC-13 4A 24V | AC-15 4A 230V
• Actuation frequency max.: 1200 1/h
• Ambient temperature: -20 - +55 °C
• Approach direction: C
• Connection: 3 x M20 x 1.5
• Degree of protection: IP67
• Guard locking principle: Closed-circuit current principle
• Installation orientation: any
• Locking force Fmax: 5000 N
• Contact: Silver alloy, gold flashed
• Housing: Reinforced thermoplastic
• Mechanical life: 1 x 10⁶
• Number of guard lock monitoring NO contacts: 1
• Number of guard lock monitoring positively driven contacts: 1

Technical Information:

• Euchner TK... Safety Switches with Guard Locking Pin Technical Data
• Euchner TK... Safety Switches with Guard Locking Pin Operating Instructions
• Euchner Safety Switches with Plastic Housing Catalog
