101144269
Schmersal

101144269

Alt: AZM170SK-02ZRK-2197 230 VAC, AZM 170SK-02ZRK-2197 230VAC

$651.00

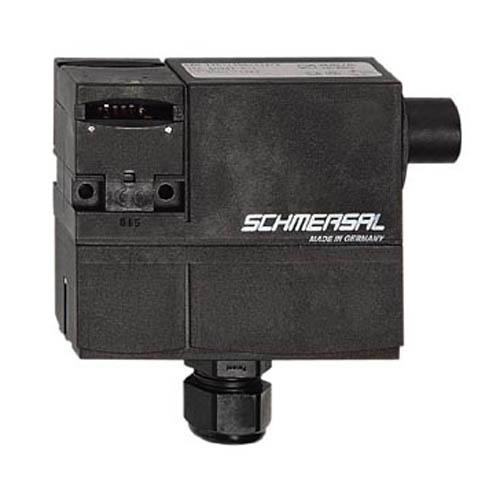

Safety Switch, Solenoid, Screw, 230 VAC

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Schmersal AZM 170 series:

  • Solenoid safety interlock switch
  • Thermoplastic enclosure
  • Double-insulated
  • Compact: 90mm x 84mm x 30mm
  • Protection against incorrect locking
  • High holding force
  • Available in 5N or 30N latching force





Features Include:

  • Thermoplastic enclosure
  • Double-insulated
  • Compact design
  • Dimensions: 90 mm x 84 mm x 30 mm
  • 1 Cable entry M 20 x 1.5
  • Interlock with protection against incorrect locking.
  • Long life
  • High holding force
  • IDC method of termination
  • Manual release
  • Connector: M12, 4-pole
  • Housing Material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Ambient Temperature: -25° - +60°C
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Schmersal

101122893

Actuator, Straight, Rigid, Stainless Steel, for Schmersal EX-AZM 170 Solenoid Interlocks, 140mm Min. Actuating Radius via Narrow Edge, 200mm on Hinged Guards, Suited for Sliding Doors, Mounting Screws Not Included

$13.00

Schmersal

101122895

Actuator, Angled, Stainless Steel (V2A), for Schmersal EX-AZM 170 Solenoid Interlocks, 140mm Min. Actuating Radius via Narrow Edge, 200mm on Hinged Guards, Hinge Axis 13mm Above Switch, Suited for Sliding Doors

$13.00

Schmersal

101139789

Actuator, Angled, Stainless Steel, for Schmersal EX-AZM 170 Solenoid Interlocks, 140mm Min. Actuating Radius via Narrow Edge, 200mm on Hinged Guards, Hinge Axis 25mm Above Switch, Suited for Sliding Doors, Mounting Screws Not Included

$36.00

Schmersal

101139788

Actuator, Straight, Stainless Steel, for Schmersal EX-AZM 170 Solenoid Interlocks, 140mm Min. Actuating Radius via Narrow Edge, 200mm on Hinged Guards, Hinge Axis 37.5mm Above Switch, Suited for Sliding Doors, Mounting Screws Not Included

$36.00

Schmersal

101137406

Actuator, Straight, Rubber Mounted for Vibration Damping, Stainless Steel (V2A), for Schmersal EX-AZM 170 Solenoid Interlocks, 200mm Min. Actuating Radius on Hinged Guards, Suited for Sliding Doors, 2Nm Max. Mounting Torque

$25.00
