Alt: AZM170-11ZRK-ST-2197 230 VAC, AZM 170-11ZRK-ST-2197-230
$760.00
Safety Interlock Switch, Solenoid Locking, IDC, 230VAC
- Weight:
- 1.25 LBS
- Minimum Purchase:
- 1 unit
Description

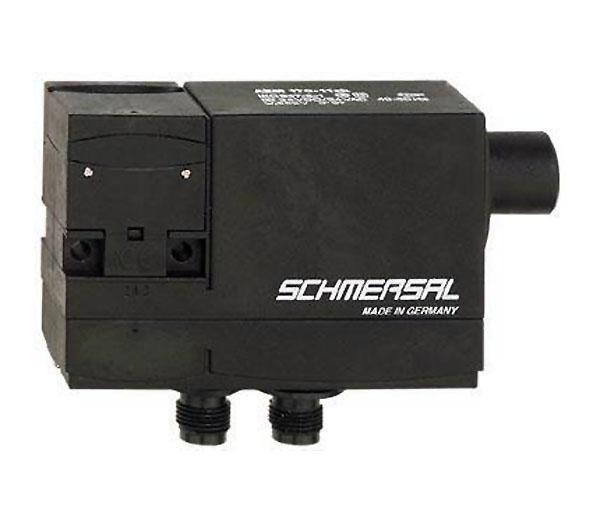

Schmersal AZM 170 series:
- Solenoid safety interlock switch
- Thermoplastic enclosure
- Double-insulated
- Compact: 90mm x 84mm x 30mm
- Protection against incorrect locking
- High holding force
- Available in 5N or 30N latching force
Features Include:
- Thermoplastic enclosure
- Double-insulated
- Compact design
- Dimensions: 90 mm x 84 mm x 30 mm
- 1 Cable entry M 20 x 1.5
- Connector: M12, 4-pole
- Interlock with protection against incorrect locking.
- Long life
- High holding force
- IDC method of termination
- Manual release
- Housing Material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Ambient Temperature: -25° - +60°C
