101186198
Schmersal

101186198

Alt: AZM170ST-12/11ZRKA 24 VAC/DC, AZM 170ST-12/11ZRKA 24VAC/DC

$790.00

Safety Switch, Power to Lock, 24 VAC/DC, 1NO, 2NC/1NO, 1NC, Manual Release

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Safety Switch, Power to Lock, 24 VAC/DC 1NO,2NC/1NO,1NC, Manual Release

Features Include:

  • Thermoplastic enclosure
  • Double-insulated
  • Compact design

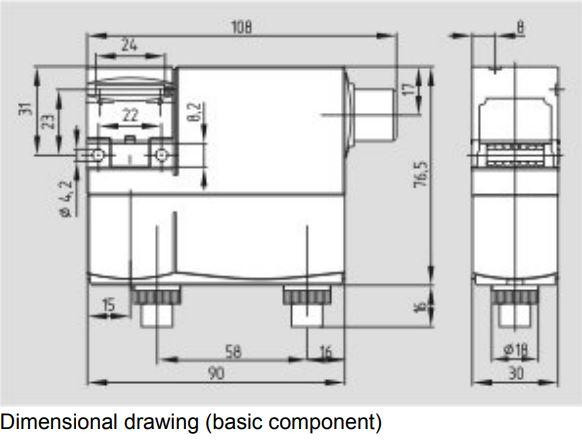

  • Dimensions: 90 mm x 84 mm x 30 mm
  • 1 Cable entry M 20 x 1.5
  • Interlock with protection against incorrect locking.
  • Long life
  • High holding force
  • IDC method of termination
  • Manual release
  • Connector: M12, 4-pole
  • Housing Material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Ambient Temperature: -25° - +60°C
