Schmersal
101128545
Actuator, Straight, with Return Spring, Brass, for Schmersal EX-AZM 415 Solenoid Interlocks, Tolerates up to 6mm Overtravel, 25,000N Shearing Force, Suited for Sliding Doors
$105.00
101167207
Alt: AZM415-11/11ZPKA 110VAC, AZM 415-11/11ZPKA 110VAC
$1,184.00

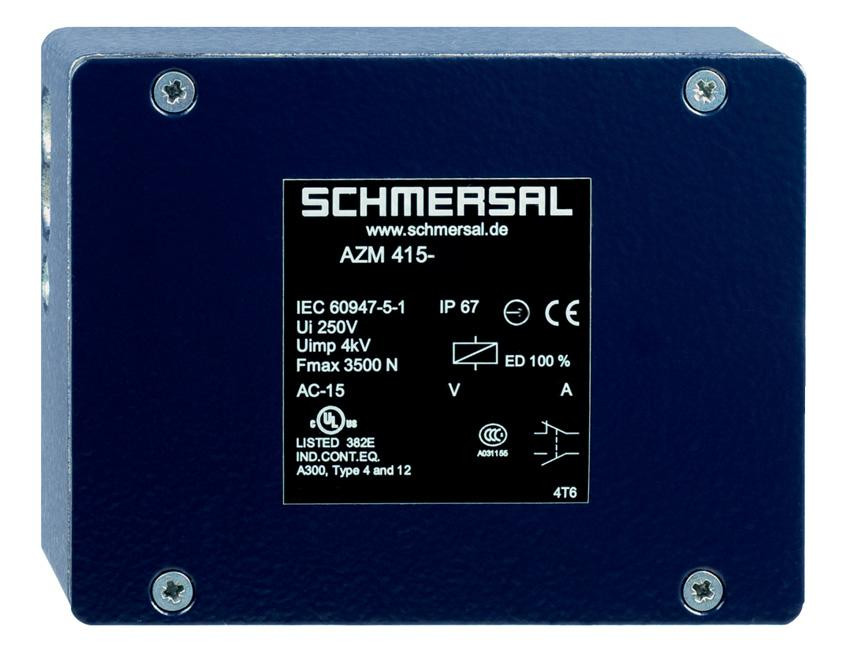

Safety Switch, Heavy-Duty, 2NC/2NO, 110VAC, Power to Lock, Without Manual Release
- Weight:
- 2.00 LBS
- Minimum Purchase:
- 1 unit
Description
Safety Switch, Heavy-Duty, 2NC/2NO, 110VAC Power to Lock, Without Manual Release
Features Include:
- Adjustable ball latch to 400 N
- 2 switches in one enclosure
- Problem-free opening of stressed doors by means of bell-crank system
- Ex version available
- 130 mm x 100 mm x 46,5 mm
- Metal enclosure
- Interlock with protection against incorrect locking.
- Robust design
- Long life
- 2 cable entries M 20 x 1.5
- Cut clamp termination
Technical Information:
Read more about Switches here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Schmersal
101142540
Actuator, Straight, with Locking Bolt and Ball Latch, Brass, for Schmersal EX-AZM 415 Solenoid Interlocks, 12,500N Shearing Force, 237 x 60 x 69.5mm (L x W x H), Suited for Sliding Doors
$516.00
Schmersal
101144796
Actuator, Flexible, 250mm Min. Actuating Radius In Line with Actuator Plane, Brass, for Schmersal EX-AZM 415 Solenoid Interlocks, 25,000N Shearing Force, Suited for Hinged Guards and Sliding Doors
$115.00
Schmersal
101144797
Actuator, Flexible, 250mm Min. Actuating Radius at 90° to Actuator Plane, Brass, for Schmersal EX-AZM 415 Solenoid Interlocks, 25,000N Shearing Force, Suited for Hinged Guards and Sliding Doors
$115.00
$131.00
