156240
Alt: CTP-L1-AP-U-HA-AE-SA-EX-156240
Safety Switch, Fiberglass Reinforced Thermoplastic, 3900 N Max Locking Force, 24VDC, M12 8-pin Plug, IP65/66
- Weight:
- 2.94 LBS
- Minimum Purchase:
- 1 unit

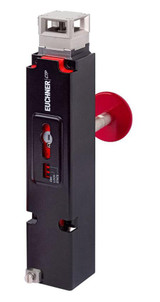

The Euchner CTP series transponder-coded safety switch with guard locking secures safety doors and flaps on machines and systems. It combines the proven operating principle of an electromechanical guard locking switch with transponder-coded safety technology, so even a single CTP achieves Category 4/PL e according to EN ISO 13849-1 without additional fault exclusion and meets the requirements of EN ISO 14119. Integrated guard locking with guard lock monitoring allows use for both personnel protection and process protection, and the compact design permits space-saving mounting on the guard. In the AP version, the CTP connects as an individual device to all common safety evaluation units and safety control systems.
Key Features
- Guard locking with guard lock monitoring for personnel or process protection
- Integrated CES-AP evaluation electronics; no separate evaluation unit required
- Guard locking force up to 3,900 N
- Two-part design with the switch on the fixed guard and a separate actuator on the movable guard
- Integrated funnel in the head improves actuator insertion on unstable or misaligned doors
- Faulty closure protection prevents the safety outputs from switching on if the actuator is not fully inserted
- Head can be rotated in 90° steps
- Mounting compatible with Euchner TP, STP and STA safety switches
- IP67/IP69/IP69K degree of protection for harsh, dirty environments
Certifications
- Category 4 / PL e according to EN ISO 13849-1
- EN ISO 14119
