Ships from manufacturer in ~42 days (as of 10/12/2026)
166889
Alt: CTP-I2-AS2B-U-HA-AZC-SJ-166889
$1,318.25

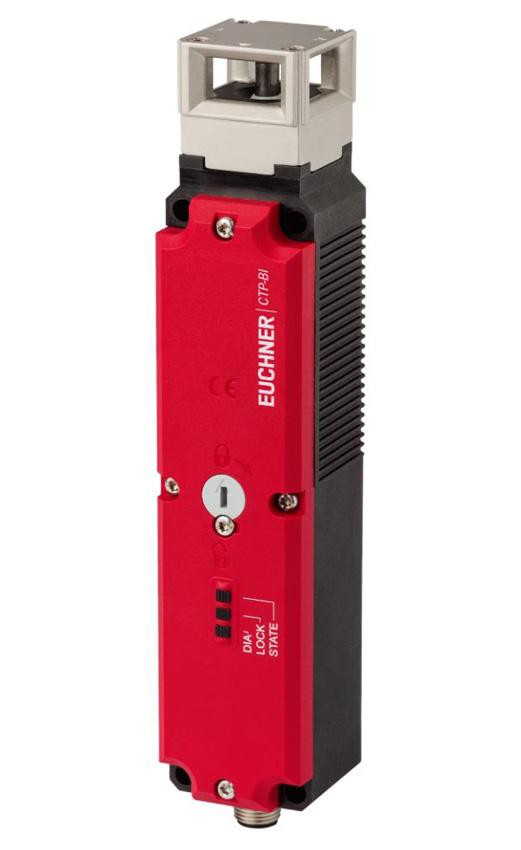

Safety Switch, CTP-I2-AS2B-U-HA-AZC-SJ-166889
- Weight:
- 1.36 LBS
- Minimum Purchase:
- 1 unit
Description
The Euchner CTP series transponder-coded safety switch with guard locking secures safety doors and flaps on machines and systems. It combines the proven operating principle of an electromechanical guard locking switch with transponder-coded safety technology, so even a single CTP achieves Category 4/PL e according to EN ISO 13849-1 without additional fault exclusion and meets the requirements of EN ISO 14119. These I versions provide guard locking intended for process protection only, with a compact design that permits space-saving mounting on the guard.
Key Features
- Guard locking for process protection only
- Guard locking force up to 3,900 N
- Two-part design with the switch on the fixed guard and a separate actuator on the movable guard
- Integrated funnel in the head improves actuator insertion on unstable or misaligned doors
- Faulty closure protection prevents the safety outputs from switching on if the actuator is not fully inserted
- Head can be rotated in 90° steps
- Mounting compatible with Euchner TP, STP and STA safety switches
- IP67/IP69/IP69K degree of protection for harsh, dirty environments
Certifications
- Category 4 / PL e according to EN ISO 13849-1
- EN ISO 14119
