137134
Alt: CTP-I1-AP-U-HA-ZZC-SA-137134

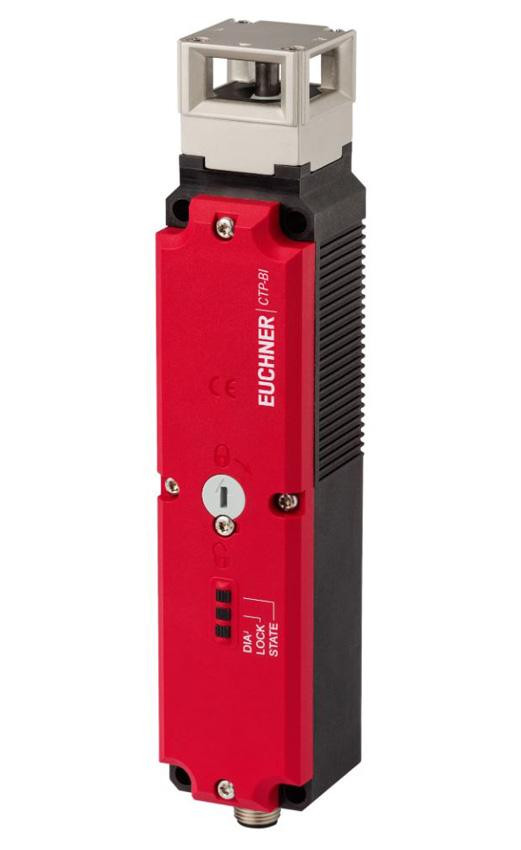

Safety Switch, CTP-I1-AP-U-HA-ZZC-SA-137134
- Weight:
- 1.31 LBS
- Minimum Purchase:
- 1 unit
The Euchner CTP series transponder-coded safety switch with guard locking secures safety doors and flaps on machines and systems. It combines the proven operating principle of an electromechanical guard locking switch with transponder-coded safety technology, so even a single CTP achieves Category 4/PL e according to EN ISO 13849-1 without additional fault exclusion and meets the requirements of EN ISO 14119. These I versions provide guard locking intended for process protection only, with a compact design that permits space-saving mounting on the guard. In the AP version, the CTP connects as an individual device to all common safety evaluation units and safety control systems.
Key Features
- Guard locking for process protection only
- Integrated CES-AP evaluation electronics; no separate evaluation unit required
- Guard locking force up to 3,900 N
- Two-part design with the switch on the fixed guard and a separate actuator on the movable guard
- Integrated funnel in the head improves actuator insertion on unstable or misaligned doors
- Faulty closure protection prevents the safety outputs from switching on if the actuator is not fully inserted
- Head can be rotated in 90° steps
- Mounting compatible with Euchner TP, STP and STA safety switches
- IP67/IP69/IP69K degree of protection for harsh, dirty environments
Certifications
- Category 4 / PL e according to EN ISO 13849-1
- EN ISO 14119
