Leuze

MLC520R30-1200

Alt: 68002312, Non-Cancellable / No Returns

$1,795.00

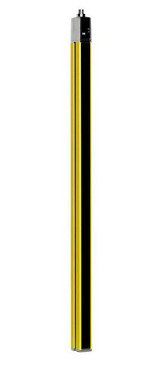

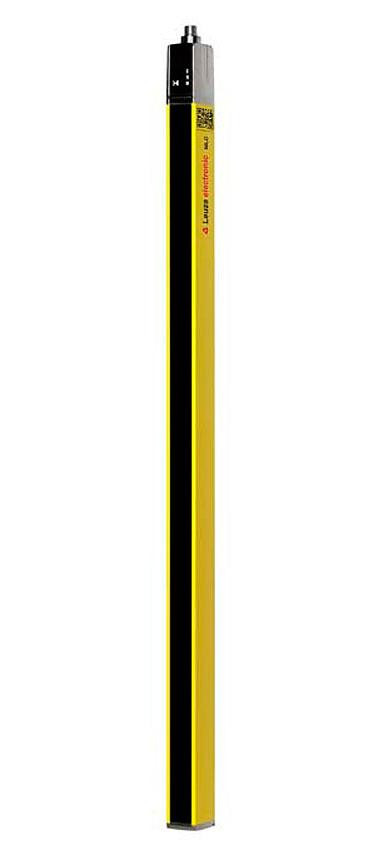

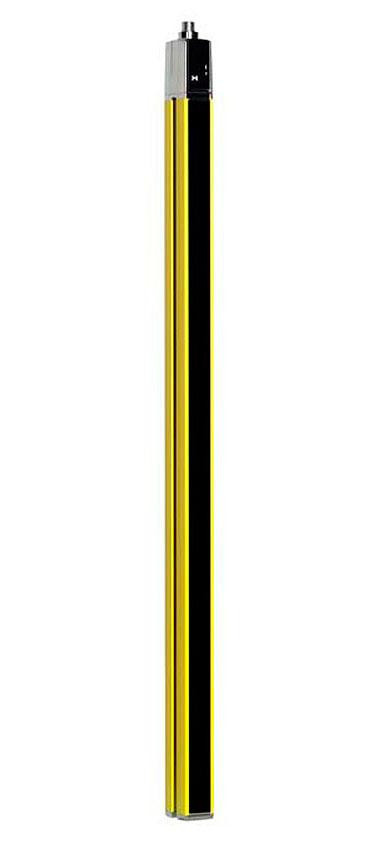

Safety Light Curtain Std. Receiver, EDM/RES Select, 30mm Resolution, 1200mm Field Height, NCNR

Minimum Purchase:
1 unit
Adding to cart… The item has been added
MLC520R30-1200
MLC520R30-1200
MLC520R30-1200
MLC520R30-1200
MLC520R30-1200
MLC520R30-1200
Description

Features Include:

  • Supply voltage: 24 V, DC, -20 - 20 %
  • Current Consumption, max.: 150 mA
  • Fuse: 2 A semi time-lag
  • Switching Voltage, typ.: 22.5V DC
  • Protective field height: 1200 mm
  • Operating range: 0 - 10 m
  • Dimension (W x H x L):  29 mm x 966 mm x 35.4 mm
  • Type of fastening: Groove mounting, Mounting on Device Column, Swivel mount, Mounting bracket
  • Housing material:  Metal, Aluminum
  • Thread size: M12
  • Number of Pins: 8-pins
  • Restart delay time: 100 ms
