53802104
Alt: RSL220-S/08-M12
Safety Laser Scanner, Field Triples: 8, Con 1: 8-Pin M12, Con 2: USB, Bluetooth / USB, 0-3m Operating Range, 0-15m Warning Range, 24VDC, For Mobile & Stationary Danger Zone Guarding, IP65, NCNR
- Weight:
- 1.50 LBS
- Minimum Purchase:
- 1 unit

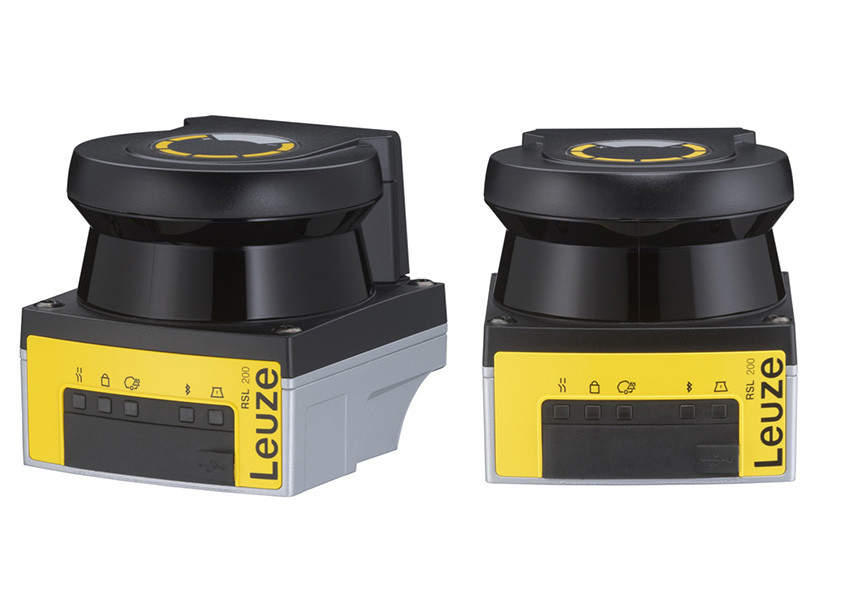

The Leuze RSL 200 safety laser scanner series delivers ultra-compact area guarding and mobile danger zone protection in a housing measuring just 80 x 80 x 86 mm. With a 275° scanning angle, a 3 m protective field range, and a 15 m warning field range, the RSL 200 safeguards machines, AGVs, and AMRs while adapting easily to tight installation spaces. Rotatable M12 connectors simplify cable routing, and a removable configuration memory allows fast, realignment-free device replacement when service is required.
Key Features
- Type 3 safety rating (IEC/EN 61496), SIL 2 (IEC 61508), and Performance Level d (EN ISO 13849-1)
- Up to 8 switchable field triples for adapting protective and warning zones to curved paths and changing speeds
- 24VDC supply voltage and IP65-rated housing for mobile and stationary use
- M12 8-pin connector for the machine interface, plus USB-C and Bluetooth for configuration and diagnostics
- RSL 200 mobile app support for real-time status and diagnostic access via Bluetooth
Certifications
- TÜV Süd certified
- UL US listed
- CE marked
