50 available from manufacturer (as of 10/6/2026)
174014
Alt: CTS-C1-BR-CC-FLX-AP-VSA-174014
$732.49
Transponder-Coded Safety Switch, RFID, Closed-Circuit, PVC Cable 25 cm Length, M12 Connector Plug 8-Pin, Guard Locking (OL) / Door Position 1 (OD) Monitoring Outputs
- Weight:
- 1.25 LBS
- Minimum Purchase:
- 1 unit
Description

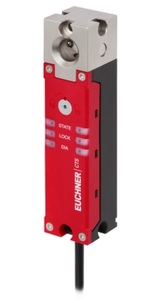

The Euchner CTS-BR FlexFunction safety switch is an RFID transponder-coded safety switch with guard locking. A function actuator configures the switch during setup, setting guard lock monitoring active or inactive and the coding level high or low. Auxiliary releases on the front and rear allow access in the event of a malfunction such as a power failure.
Key Features
- Transponder-coded (RFID) safety switch with guard locking
- FlexFunction configuration via function actuator
- Closed-circuit current principle (C1, locking force 5000 N) or open-circuit current principle for process protection (C2, locking force 3800 N), depending on model
- Guard locking (OL) and door position (OD) monitoring outputs
- Auxiliary release on front and rear side
- PVC connecting cable 25 cm with 8-pin M12 plug connector
- Operating voltage 24 V DC
- IP65/IP67/IP69/IP69K degree of protection
