Ships from manufacturer in ~56 days (as of 10/6/2026)
169766
Alt: MBM-PN-S2-MLI-3B-169766
$2,011.71
Bus Module MBM-PN...For Connecting MGB2 or MCM Modules, Connection to PROFINET with PROFIsafe, M12 Plug Connector D-Coded, M12 Plug Connector L-Coded 5-Pin, Integrated Switch
- Weight:
- 1.90 LBS
- Minimum Purchase:
- 1 unit
Description

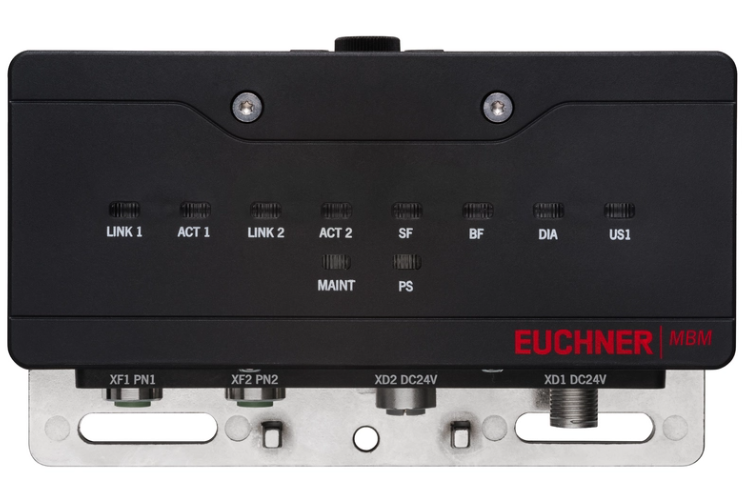

The Euchner MBM-PN bus module connects Euchner MGB2 Modular and MCM Modular devices to PROFINET with PROFIsafe. MGB2 or MCM modules plug directly onto the bus module or connect remotely with standard M12 5-pin cables. The module has an integrated switch.
Key Features
- For connecting MGB2 or MCM modules; compatible with all Modular devices
- Connection to PROFINET with PROFIsafe
- Connection via RJ45, M12 D-coded, or M12 D-coded and L-coded plug connectors, depending on model
- Integrated switch
- Remote or direct mounting
- Operating voltage 24 V DC
- Fiber glass reinforced plastic and nickel-plated die-cast zinc housing
- IP65 degree of protection
