5 available from manufacturer (as of 9/28/2026)
158875
Alt: ESM-CB-AZ-FI2-BR-IO-158875
$598.23

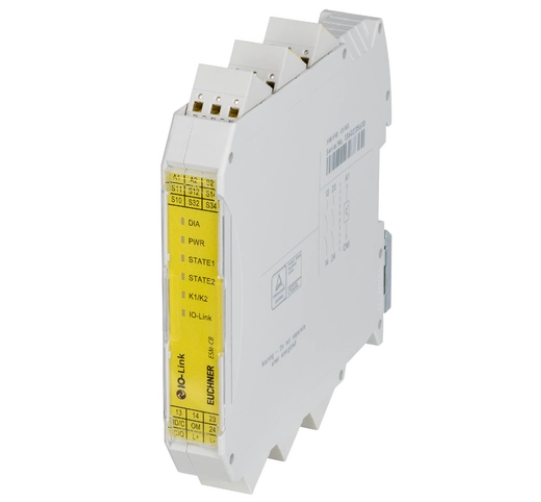

IO-Link Gateway with relay outputs for BP/BR Switches, Compact Version 18 mm Width, Rail Mounting, LED Indicators, Start Button and Feedback Loop Can be Connected
- Weight:
- 0.51 LBS
- Minimum Purchase:
- 1 unit
Description
The Euchner IO-Link gateway reads process and device data from Euchner BP/BR safety switches and transfers them to a higher-level control system over IO-Link. BR switches connect in series without addressing individual switches, and guard locking of BP/BR switches can be controlled depending on the switch used.
Key Features
- IO-Link device for reading process and device data of BP/BR safety switches
- Connection for BR safety switch chains without addressing the individual switches
- Control of guard locking of BP/BR switches, depending on the switch used
- ESM-CB version with relay outputs for use as a safety relay (Category 4 according to EN ISO 13849-1), 18 mm wide; GWY-CB version 12.5 mm wide, depending on model
- Rail mounting
- LED status indicators
- Plug-in spring terminals
