3 available from manufacturer (as of 10/6/2026)
121289
Alt: MSC-CB-AC-FI8FO2-121289
$781.80

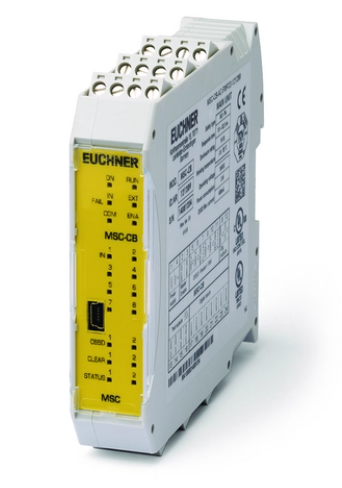

Safety Relay Base Unit MSC-CB, 8 Single-Channel/4 Dual-Channel Inputs, 2 Control Inputs, 2 Monitoring Outputs, PC Connection for the EUCHNER Safety Designer Software
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Euchner MSC-CB base unit is the freely programmable heart of the Euchner MSC small control system. It can be used as a standalone safety controller or expanded with up to 14 MSC expansion modules, and it is programmed with the EUCHNER Safety Designer software.
Key Features
- Freely programmable base unit, standalone or expandable
- 8 single-channel or 4 dual-channel inputs
- 2 control inputs for start/restart or external device monitoring (EDM)
- 2 dual-channel semiconductor outputs (PL e, Category 4)
- 4 test outputs for short circuit and overload monitoring
- 2 monitoring outputs
- PC connection for the EUCHNER Safety Designer software
