5 available from manufacturer (as of 10/12/2026)
103967
Alt: CMS-R-CXC-SC
$86.80

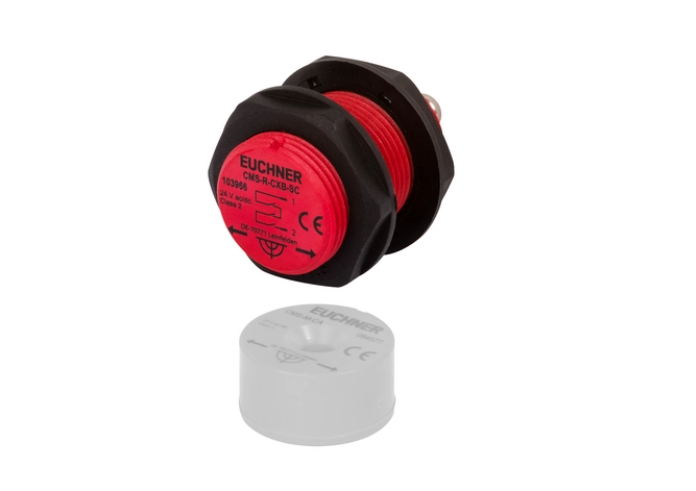

Read heads CMS, design C - with NC/NO contacts, M8 In combination with evaluation units CMS-E-BR/CMS-E-ER/CMS-E-FR;Cylindrical version M25;Plug connector M8
- Weight:
- 0.12 LBS
- Minimum Purchase:
- 1 unit
Description
The Euchner CMS read head is used together with a Euchner CMS actuator and the Euchner CMS-E-BR, CMS-E-ER and CMS-E-FR evaluation units. These versions provide an NO + NC contact combination.
Key Features
- Read head for use in combination with Euchner CMS-E-BR, CMS-E-ER and CMS-E-FR evaluation units
- NO + NC switching characteristics
- Design A cube-shaped 88 x 25 mm, design B cube-shaped 36 x 26 mm, design C cylindrical M25 or design E cylindrical M30, depending on model
- PVC or PUR connecting cable or 4-pin M8 plug connector, depending on model
- Fiber glass reinforced PPS housing
- IP67 degree of protection
- Ambient temperature -20 to 60 °C
