Ships from manufacturer in ~56 days (as of 9/28/2026)
092023
Alt: 92023, CMS-R-BXO-05V
$85.34
Read Heads CMS, Design B- With 3 NO Contacts Wired in Parallel, Used in Combination With Evaluation Unit CMS-E-AR, PVC Type Connecting Cable 5 M Length
- Weight:
- 0.60 LBS
- Minimum Purchase:
- 1 unit
Description

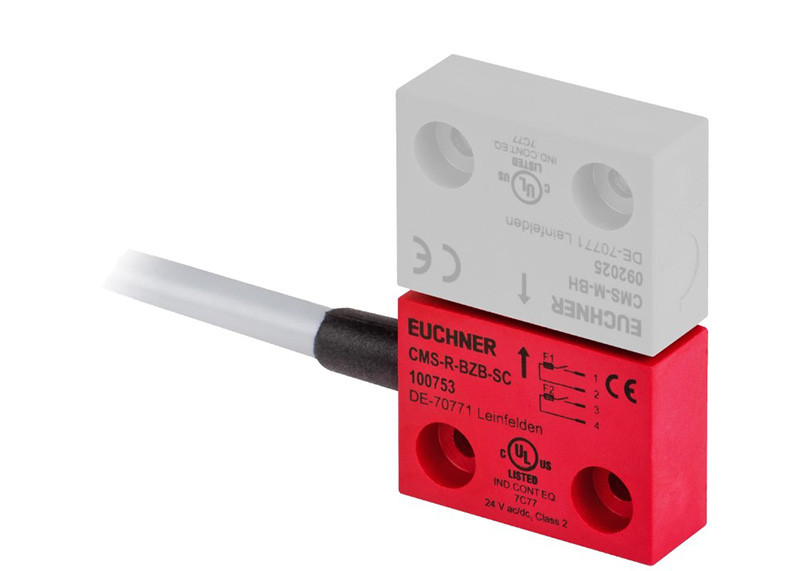

The Euchner CMS read head is used together with a Euchner CMS actuator and the Euchner CMS-E-AR evaluation unit. These versions use NO contact combinations wired in parallel or in series, depending on model.
Key Features
- Read head for use in combination with Euchner CMS-E-AR evaluation units
- 3 NO contacts, wired in parallel or in series depending on model
- Design A cube-shaped 88 x 25 mm, design B cube-shaped 36 x 26 mm, design C cylindrical M25 or design E cylindrical M30, depending on model
- PVC or PUR connecting cable or M8 plug connector, depending on model
- Fiber glass reinforced PPS housing
- IP67 degree of protection
- Ambient temperature -20 to 60 °C
