793536

PILZ PNOZmulti Series configurable safe small controllers replace banks of fixed-function safety relays with a single, programmable safety platform for machine and plant automation. PNOZmulti 2 base units support safety functions up to PL e/SIL CL 3 and can be expanded with safe digital I/O, relay output, analogue input, and safe motion monitoring modules. A broad range of fieldbus and communication options — including PROFIBUS, CANopen, CC-Link, Ethernet, EtherNet/IP, PROFINET, EtherCAT FSoE, POWERLINK, RS232, and SafetyNET p — enables integration into virtually any machine or plant network architecture. PDP67 decentralized I/O modules extend compatible systems directly to IP67-rated field wiring, and the PNOZmulti Configurator software handles project design, configuration, documentation, and commissioning from a single environment.

Key Features

• Configurable safe small controller platform for machine safety and automation up to PL e/SIL CL 3 where specified
• PNOZmulti 2 base units are modular and expandable for application-specific safety architectures
• Expansion modules cover safe digital inputs, safe relay and semiconductor outputs, analogue inputs, standard I/O, and safe motion monitoring
• Communication options include PROFIBUS, CANopen, CC-Link, Ethernet, EtherNet/IP, PROFINET, EtherCAT FSoE, POWERLINK, RS232, and SafetyNET p where specified
• PDP67 decentralized I/O extends PNOZmulti systems to IP67-rated field wiring; stainless steel PDP67 variants available for hygienic environments
• PNOZmulti Configurator software supports project design, configuration, documentation, and commissioning
• Memory accessories include chip cards, 32 kB chip card options, and USB memory for configuration storage and transfer

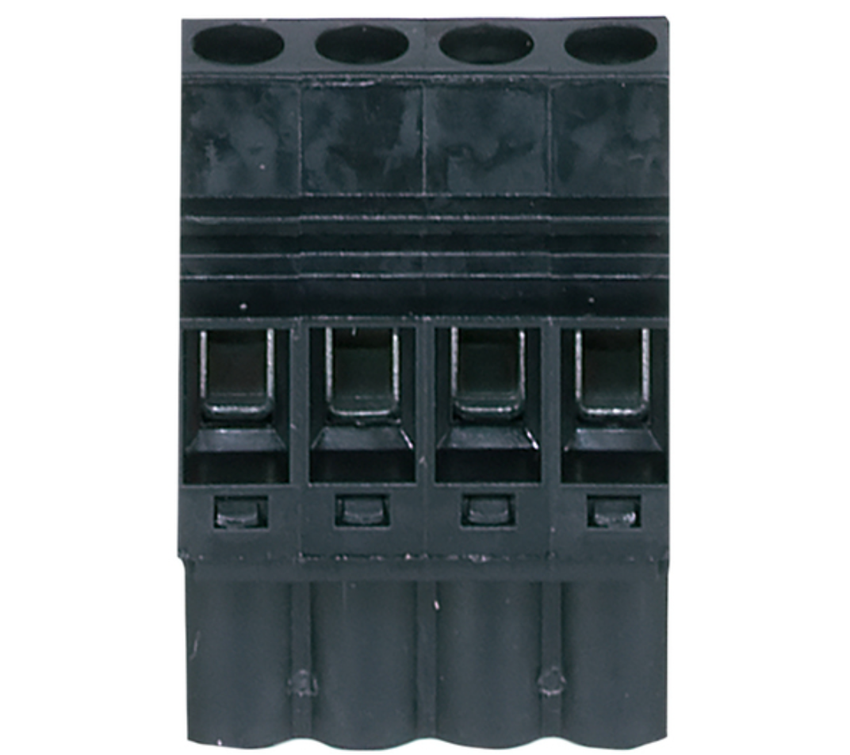

• Service accessories include terminal sets, chip card readers, card holders, tamper-evident seals, and terminator plugs
• Item-specific specifications vary by device type, I/O count, output technology, communication protocol, memory capacity, license type, and terminal style
