783544

PILZ Small Controller Accessories support installation, wiring, motion monitoring, and service requirements for compatible PNOZmulti, PNOZmulti 2, PNOZmulti Classic, PNOZ s30, and PSS 4000 small controller and speed-monitoring applications. The series includes screw and spring-loaded terminal sets, motion monitoring adapter cables, speed monitor adapter cables, universal D-Sub adapters, adapter boxes, connection boxes, terminal blocks with filters, and related connection accessories used to connect compatible encoder, drive, fieldbus, and motion monitoring devices.

Key Features

• Accessory group for compatible Pilz small controllers, configurable safety controllers, and speed monitoring systems
• Supports PNOZmulti, PNOZmulti 2, PNOZmulti Classic, PNOZ s30, PNOZ msi, and PSS 4000 applications where specified by the item

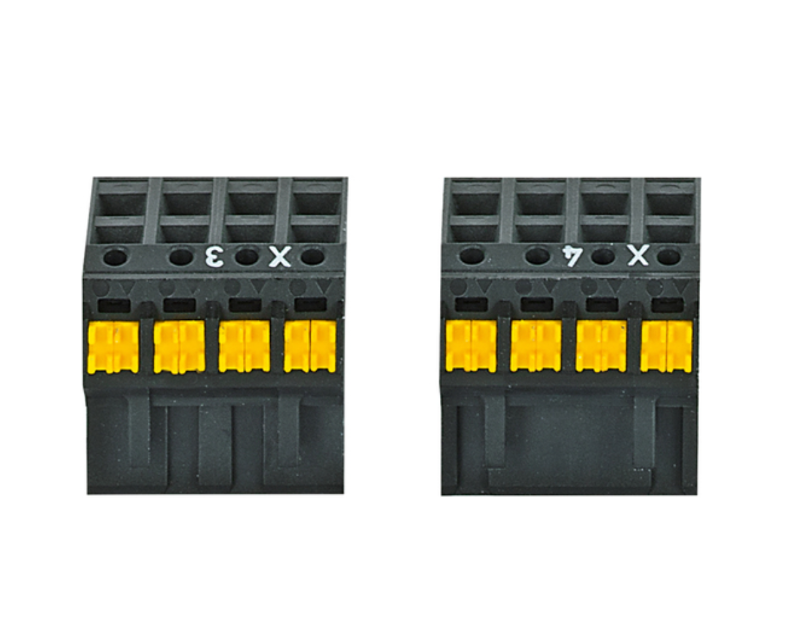

• Terminal set options include screw-type and spring-loaded versions for compatible PNOZmulti base units, expansion modules, fieldbus modules, and motion monitoring modules
• Motion monitoring adapter cables support connection between compatible Pilz motion monitoring modules and selected drive or encoder systems
• Speed monitor adapter cables support PNOZ msi speed monitoring connections to Siemens/Heidenhain, ELAU PACDrive3, Bosch Rexroth, Lenze, SEW, Rockwell, Parker, Tendo, Leroy, SMC30, B&R ACOPOS, and other specified systems
• Universal adapter options include 9-pin, 15-pin, and 25-pin D-Sub configurations for compatible PNOZ msXp, PNOZ s30, and PNOZmulti 2 applications
• Adapter boxes and connection boxes support incremental encoder, proximity switch, and PNOZmulti Classic speed monitor wiring where specified
• Item-specific specifications vary by accessory type, compatible controller family, cable length, connector format, drive or encoder compatibility, terminal style, package quantity, and filtering range
