167839
Ships from manufacturer in ~56 days (as of 10/6/2026)
Euchner

167839

Alt: AC-PC-M23F19G-167839

$148.80

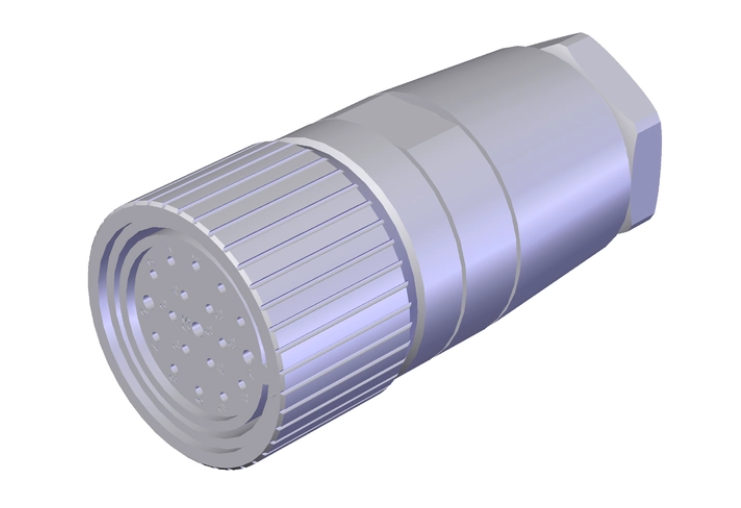

Plug connector M23, straight Female plug M23, with union nut, straight;Number of pins: 18-pin + PE (with shield spring);Conductor cross-section: 0.5...1.0 mm²;Cable diameter: 9...15 mm;for self-assembly;Crimp contacts included

Weight:
0.27 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Euchner M23 plug connectors and crimp contacts for self-assembly
Description

This Euchner M23 connection accessory supports self-assembled and extended M23 connections on Euchner devices, covering plug connectors, replacement crimp contact sets and a pre-assembled M23 cable.

Key Features

  • Straight or angled M23 plug connector, replacement crimp contact set, or 12-pin M23 connecting cable, depending on model
  • 18-pin + PE contact layout with shield spring on the 19-pin plug connectors
  • Crimp contacts included with the plug connectors
  • Option C1825 versions for use with matching C1825 connectors
  • Rated voltage max. 150 V and IP65/IP67 degree of protection on the M23 plug connectors
