Available Now!
Available Now!
(4 in stock)
8811200101
Alt: DigiRail-2R
$116.00
RS485 Dual Relay Outputs Data Loggers & Recorders
- Minimum Purchase:
- 1 unit
Description
RS485 Dual Relay Outputs Data Loggers & Recorders
Features Include:
- Analog inputs: programmable for thermocouples (J, K, T, E, N, R, S, B), Pt100, mV, V, mA
- Cold junction compensation for thermocouples and compensation for Pt100 3-wire cables
- Open loop detection for thermocouples, Pt100 and mV
- Sampling rate for 1 analog input: 10Hz for mV, V and mA. 5 Hz for t thermocouples and Pt100<
- Analog input resolution: 17 bits
- Digital inputs: in voltage, 4 to 35 V to activate. Internally limited current in 5 mA
- Digital outputs: 8 A / 250 Vac SPDT relay, resistive load
- Power: 10 to 35 Vdc, 50 mA maximum current
- 2-wire RS485 communication with Modbus RTU protocol. Configurable address and baud rate (1,200 to 115,200bps)
- LED indicators for communication and status
- Key for resetting communication parameters to original factory default
- Accuracy (at 25 °C): Pt100, mV, V and mA: ±0.15 % of full scale. Thermocouples: ±0.25 % of full scale
- Temperature effect: 0.003 % of full scale/°C
- Cold junction compensation for thermocouples: 1 °C at 25 °C. ±0.05 °C / °C
- Isolation: 1000 Vac from inputs (analog or digital) and power or communication
- Windows based configurator software (free download)

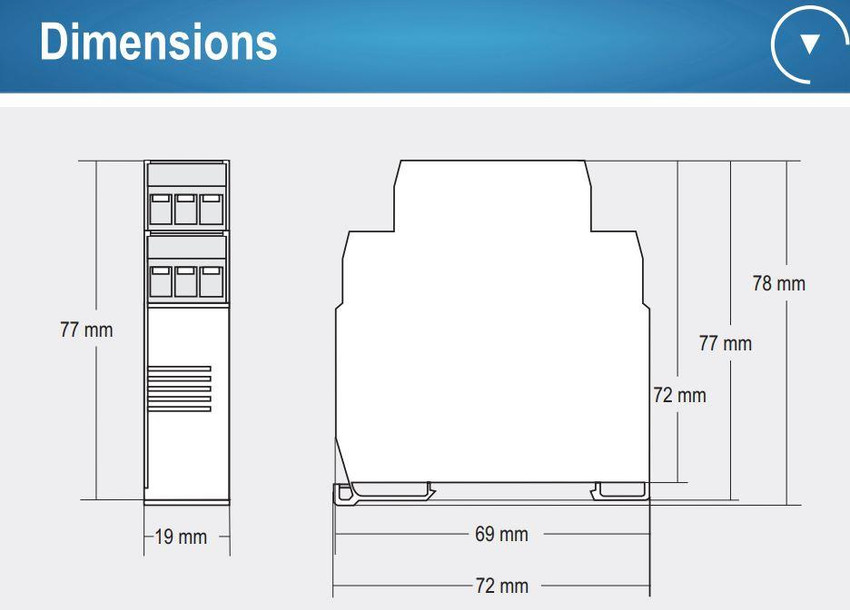

- Dimentions: 72 x 78 x 19 mm
- Mounting: 35 mm DIN rail
