SE-060
$410.50
Quadrature Encoder, Dual Shaft, 60ppr
- Weight:
- 2.00 LBS
- Minimum Purchase:
- 1 unit
Description
Quadrature Encoder, Dual Shaft, 60ppr
Features Include:
High Noise Immunity
Short Circuit Protection
Reverse Polarity Protection
- Inputs: 12 - 28 DCV - 35mA @ 15 DCV typical
- Output: Square wave with 50% duty cycle 0 - 10,000 pulse/sec
- Housing: Rugged anodized aluminum
- Shaft Rotation: Either direction
- Shaft Speed: 6,000 RPM max.
- Shaft: Stainless steel
- Bearings: Heavy duty chrome steel
- Load: 30 lbs. radial: 10 lbs. axial
- Environmental: 32ºF to 149ºF ( 0-65ºC )
Inputs: 12 - 28 DCV - 35mA @ 15 DCV typical
Need More Information?
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Autonics

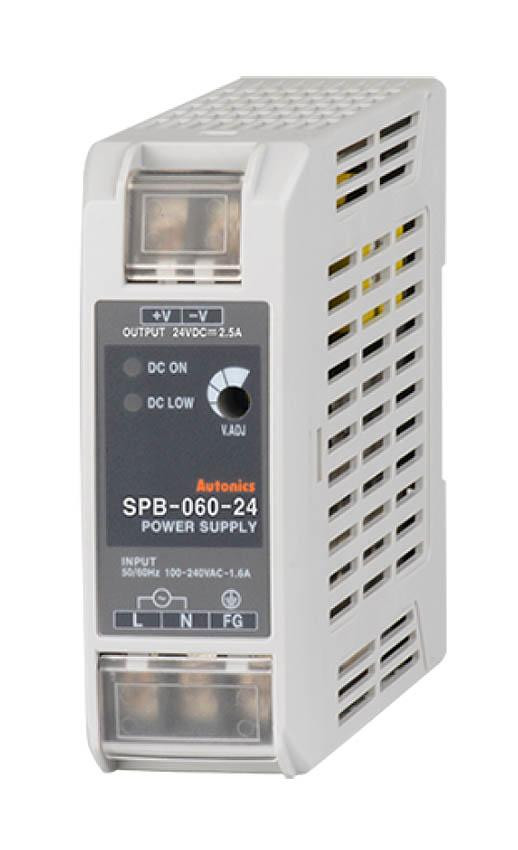

SPB-060-24
