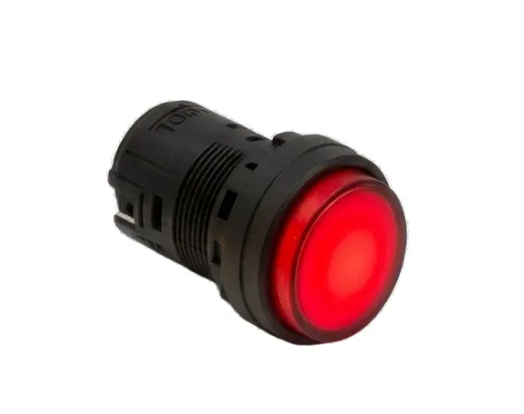

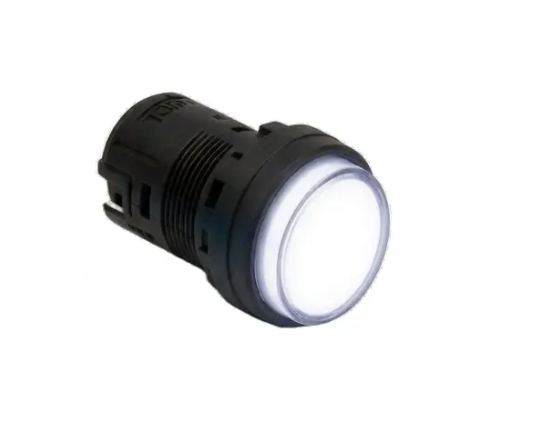

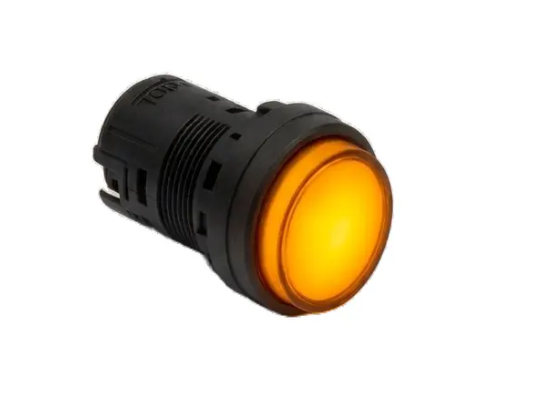

The IDEC HW Series illuminated pushbutton sub-assembled operator is used to build a 22mm HW Series illuminated pushbutton that combines machine control with visual status indication. Round and square flush, extended, mushroom, and full shroud styles are available with plastic or metal bezels and momentary or maintained action depending on model. In IDEC's updated HW Series design, the lamp holder is housed in the HW-UA1-FH full voltage adapter, and the operator pairs with the new HW-CN connecting units.
Key Features
Fits 22mm panel mounting holes
Round flush, round extended, square flush, full shroud, and 29mm or 40mm mushroom button styles, depending on model
Full shroud versions help guard against accidental actuation
Plastic or metal bezel options, depending on model
Momentary or maintained action, depending on model
Amber, green, red, blue, white, and yellow lens colors, depending on model
In the updated design, the lamp holder is located in the HW-UA1-FH full voltage adapter rather than in the connecting unit
Universal operator design works with both screw terminal and push-in connecting units, so the terminal style can be changed by replacing only the rear connecting unit
Central pusher allows up to three contact blocks in the first layer when used with push-in connecting units
Use with updated HW-CN connecting units; updated operators are not compatible with previous-generation connecting units
HW Series switches are rated UL Type 4X and IP65
Part of IDEC's updated HW Series design, which keeps the functionality, electrical ratings, and certifications of the previous generation
