HW1B-V4Y-PS-U

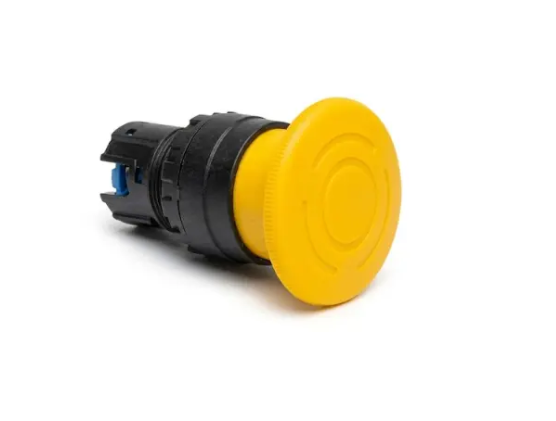

The IDEC HW Series emergency stop sub-assembled operator provides the mushroom-head actuator for building a 22mm HW Series E-Stop or stop switch for machine and equipment shutdown. Pushlock turn reset, pushlock key reset, and push-pull reset versions are available with 29mm, 40mm, or 60mm heads and plastic or metal bezels depending on model. The operator is part of IDEC's updated HW Series design and pairs with the new HW-CN connecting units.

Key Features

• Fits 22mm panel mounting holes
• Pushlock turn reset, pushlock key reset, or push-pull reset operation, depending on model
• 29mm, 40mm, or 60mm mushroom head, depending on model
• Red emergency stop and EMO heads and yellow stop switch heads, depending on model

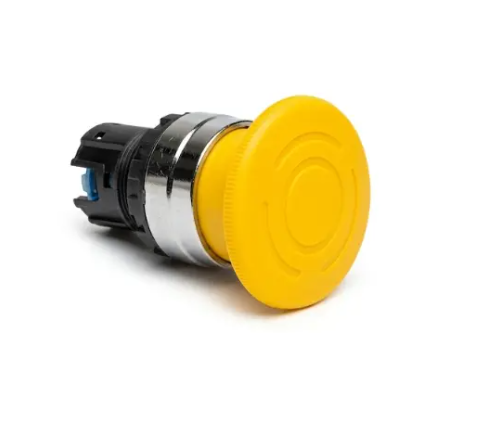

• Plastic or metal bezel options, depending on model
• HW Series E-Stops meet EN418 (IEC compliant, positive action)
• Universal operator design works with both screw terminal and push-in connecting units, so the terminal style can be changed by replacing only the rear connecting unit
• Central pusher allows up to three contact blocks in the first layer when used with push-in connecting units
• Use with updated HW-CN connecting units; updated operators are not compatible with previous-generation connecting units
• HW Series switches are rated UL Type 4X and IP65
• Part of IDEC's updated HW Series design, which keeps the functionality, electrical ratings, and certifications of the previous generation
