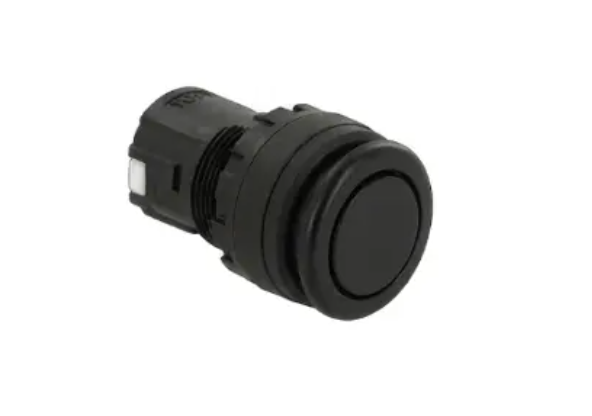

HW1B-M3-B-PS-U

The IDEC HW Series non-illuminated pushbutton sub-assembled operator is the front-of-panel actuator used to build a 22mm HW Series pushbutton for machine control panels and operator stations. The range covers round and square buttons in flush, extended, and mushroom styles, with plastic or metal bezels and momentary or maintained action depending on model. As part of IDEC's updated HW Series design, the operator pairs with the new HW-CN connecting units and works with both screw and push-in terminal styles.

Key Features

• Fits 22mm panel mounting holes
• Round flush, round extended, square flush, square extended, and 29mm, 40mm, or 60mm mushroom button styles, depending on model
• Plastic or metal bezel options, depending on model
• Momentary or maintained action, depending on model
• Black, green, red, blue, white, and yellow button colors, depending on model
• Universal operator design works with both screw terminal and push-in connecting units, so the terminal style can be changed by replacing only the rear connecting unit
• Central pusher allows up to three contact blocks in the first layer when used with push-in connecting units
• Use with updated HW-CN connecting units; updated operators are not compatible with previous-generation connecting units
• HW Series switches are rated UL Type 4X and IP65
• Part of IDEC's updated HW Series design, which keeps the functionality, electrical ratings, and certifications of the previous generation
