HW-CNF01
Alt: HW Series, Updated Design, This Item Replaced HW-CBF01
$7.42
Connecting Units with 1NC Contact Block, for HW Series Switches
- Weight:
- 0.02 LBS
- Minimum Purchase:
- 1 unit
Description

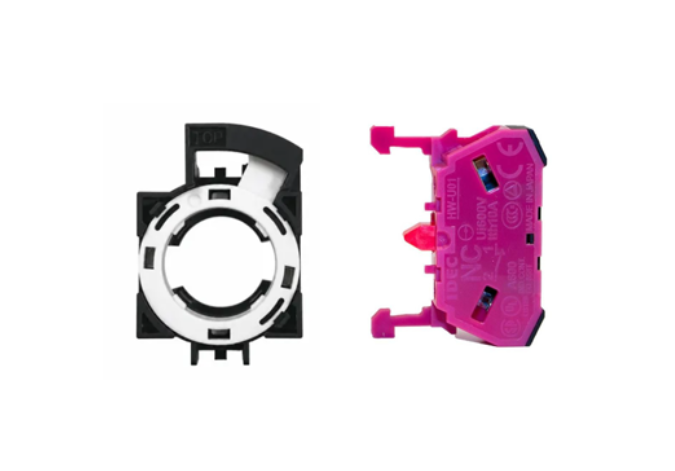

The IDEC HW Series HW-CN connecting unit with contact block is the updated screw-type rear assembly that completes an HW Series switch behind the panel, with the contact configuration already fitted. IDEC unified the connecting unit into one design for both illuminated and non-illuminated operators and replaced the separate yellow lever stopper with a one-piece lever that has an integrated locking mechanism for simpler installation.
Key Features
- Includes a 1NC contact block
- Finger-safe IP20 screw terminals accept ring, fork, and ferrule terminals and bare wires
- 600V/10A contacts with a wide operating range from 5mA at 3VAC/DC to 10A at 120VAC
- One design works with both illuminated and non-illuminated operators
- One-piece lever with integrated locking mechanism replaces the separate yellow lever stopper
- For use with updated HW Series operators (part numbers ending in -PS-U and -N-PI); not compatible with previous-generation operators
- Part of IDEC's updated HW Series design, which keeps the functionality, electrical ratings, and certifications of the previous generation
