CA30CBN25BPM1IO
Ships from manufacturer in ~70 days (as of 7/20/2026)
Carlo Gavazzi

CA30CBN25BPM1IO

Alt: CA30 Series, Minimum Order 5 Pieces, Price per Piece

$115.65

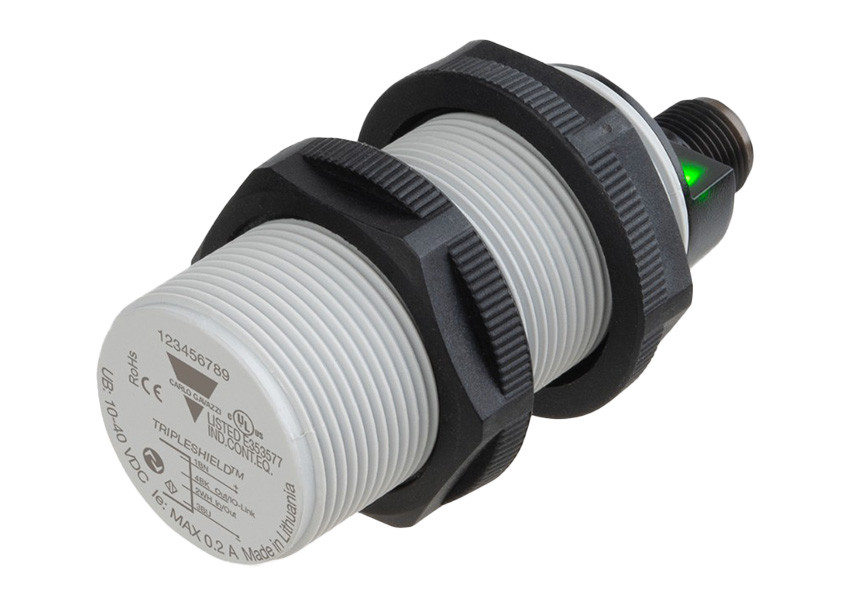

Capacitive Proximity Sensor, Ø30mm, Non-Flush, 25mm Rated Operating Distance, Multi LED, Adjustable 4-30mm, 10-40VDC Power Supply, NPN/PNP Output, NO/NC, IO-Link, M12 Connector, M30 Housing x 61mm, 4th Generation Tripleshield, ECOLAB, IP67/IP69K

Weight:
0.30 LBS
Minimum Purchase:
5 units
Adding to cart… The item has been added
Detect powders, solids, and liquids with accuracy.
Description

The Carlo Gavazzi CA18/30CB Series offers capacitive sensors engineered for harsh and hygienic environments. With LED bar feedback, Tripleshield™ protection, and IO-Link capability, these sensors help you reduce downtime, simplify setup, and ensure accurate detection in food, packaging, agricultural, and plastics industries.

Key Features

  • Tripleshield™ Protection — 4th-generation ruggedness against electrical, magnetic, and physical interference.
  • Integrated LED Bar Feedback — Real-time visualization of signal stability, ON/OFF switching, and contamination buildup.
  • IO-Link & Smart Mode — Dual-mode operation for local or remote configuration, including setpoint changes, logic, timers, and teach-in functions.
  • Flexible Output Types — NPN, PNP, or Push-Pull outputs; dual outputs configurable for alarms, logic, or switching.
  • Flush & Non-Flush Options — Multiple mounting styles with cable or M12 plug versions.
  • High Temperature & Hygienic Design — Rated up to 120 °C with sturdy PBT housing and food-safe certifications.

Certifications & Standards

  • IP69K — Maximum protection against high-pressure, high-temperature washdowns.
  • ECOLAB Certified — Resistant to food-industry disinfectants and cleaning agents.
  • CE Marking — Compliant with EN 60947-5-2 standards.
  • cULus (UL508) — Certified for North American safety standards.
  • Overvoltage & Pollution Ratings — Category III, Pollution Degree 3 for robust performance in industrial environments.
