Baumer
IFRM 05N15A3/L
Inductive Proximity Sensor, Ø5x20mm, Flush, 10-30VDC, 1mm Range, NPN NO, 2m Cable, IP67
$198.80
IFRM 05N15A3/S35L
Alt: 10144437
$179.69
Inductive Proximity Sensor, Subminiature, M5, Flush, 6-30VDC, 1mm Range Sn, NPN, NO, M8 Connector, 5 x 36mm Cylindrical Threaded Stainless Steel Housing, -25 to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

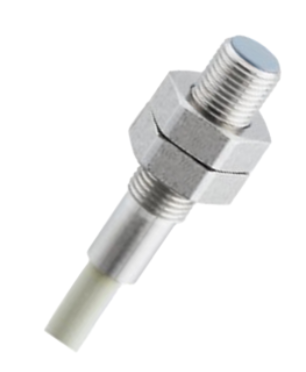

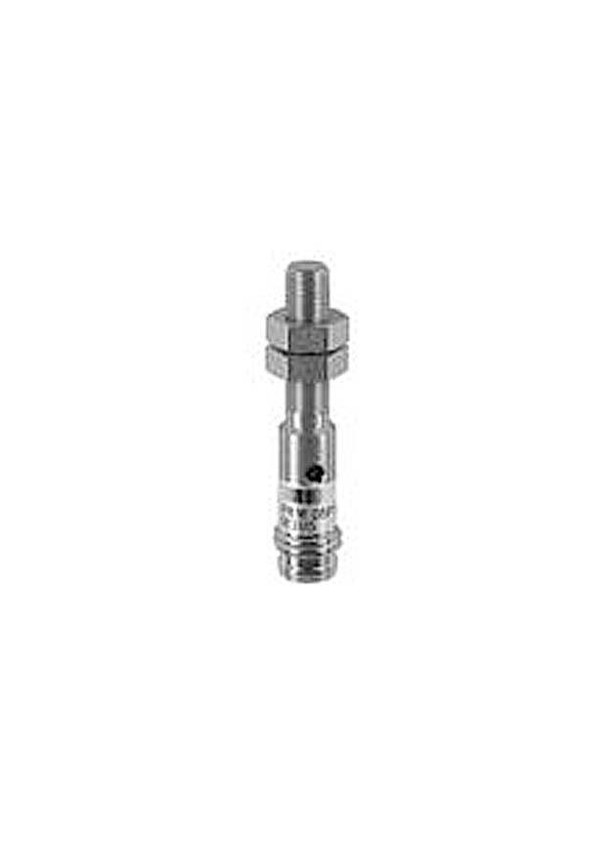

The Baumer IFRM subminiature inductive proximity switch is a very small inductive sensor for non-contact detection of metal objects in tight installation spaces.
Key Features
- Subminiature housing
- Nominal sensing distance 0.8 mm or 1 mm depending on model
- Flush mounting
- NPN or PNP switching output, NC or NO depending on model
- Supply voltage 6-30 VDC
- Connection via 0.5 m wires, 2 m cable, M5 connector, M8 connector or M8 flylead connector depending on model
- Cylindrical smooth housing in stainless steel; cylindrical threaded housing in stainless steel depending on model
- Operating temperature -25 to +75 °C
- Protection class IP67
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IFRM 05N15A3/S05L
Inductive Proximity Sensor, Ø5x24mm, Flush, 10-30VDC, 1mm Range, NPN NO, M5 Connector, IP67
$179.69
Baumer
IFRM 05N15A3/KS35PL
Inductive Proximity Sensor, Ø5x20mm, Flush, 10-30VDC, 1mm Range, NPN NO, M8 Flylead, IP67
$221.29
Baumer
IFRM 05P37A1/S35L
Inductive Proximity Sensor, Ø5x45mm, Flush, 10-30VDC, 1.6mm Range, PNP NC, M8 Connector, IP67
$154.00
$163.00
