Baumer

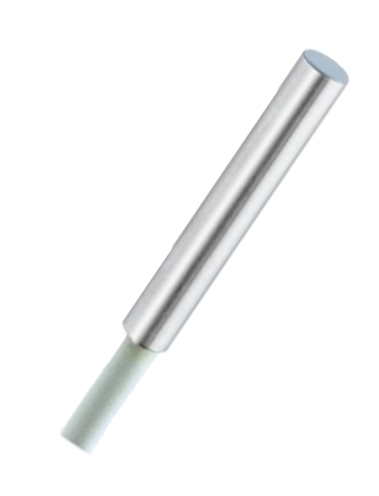

IFRM 04P15A1/L
Inductive Proximity Sensor, Subminiature, Ø4mm, Flush, 6-30VDC, 1mm Range Sn, PNP, NO, 2m Cable, 4 x 25mm Cylindrical Smooth Stainless Steel Housing, -25 to +75°C, IP67
$179.69
IFRM 04P15A1/KS35PL
Alt: 10146174
$198.80
Inductive Proximity Sensor, Subminiature, Ø4mm, Flush, 6-30VDC, 1mm Range Sn, PNP, NO, M8 Flylead Connector, 4 x 25mm Cylindrical Smooth Stainless Steel Housing, -25 to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer IFRM subminiature inductive proximity switch is a very small inductive sensor for non-contact detection of metal objects in tight installation spaces.
Key Features
- Subminiature housing
- Nominal sensing distance 0.8 mm or 1 mm depending on model
- Flush mounting
- NPN or PNP switching output, NC or NO depending on model
- Supply voltage 6-30 VDC
- Connection via 0.5 m wires, 2 m cable, M5 connector, M8 connector or M8 flylead connector depending on model
- Cylindrical smooth housing in stainless steel; cylindrical threaded housing in stainless steel depending on model
- Operating temperature -25 to +75 °C
- Protection class IP67
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer

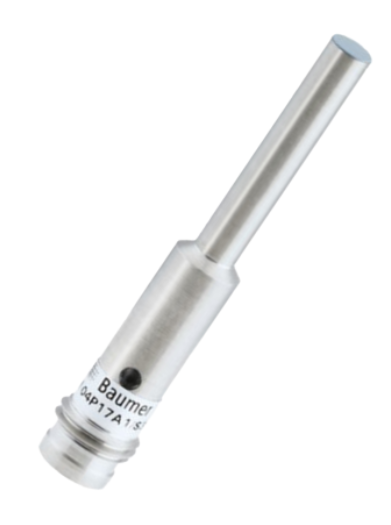

IFRM 04P15A1/S35L
Inductive Proximity Sensor, Subminiature, Ø4mm, Flush, 6-30VDC, 1mm Range Sn, PNP, NO, M8 Connector, 4 x 45mm Cylindrical Smooth Stainless Steel Housing, -25 to +75°C, IP67
$154.00
Baumer
IFRM 04P35B1/KS35PL
Inductive Proximity Sensor, Ø4x22mm, Flush, 10-30VDC, 0.8mm Range, PNP NC, M8 Flylead, IP67
$253.20
Baumer
IFRM 04N37A3/KS35PL
Inductive Proximity Sensor, Ø4x20mm, Flush, 10-30VDC, 1.6mm Range, NPN NC, M8 Flylead, IP67
$213.00
Baumer
IFRM 04P35A3/KS35PL
Inductive Proximity Sensor, Ø4x20mm, Flush, 10-30VDC, 1mm Range, PNP NC, M8 Flylead, IP67
$198.80
