$16.06
IFRM 05P15A1/S35L
Alt: 10152822
$154.00

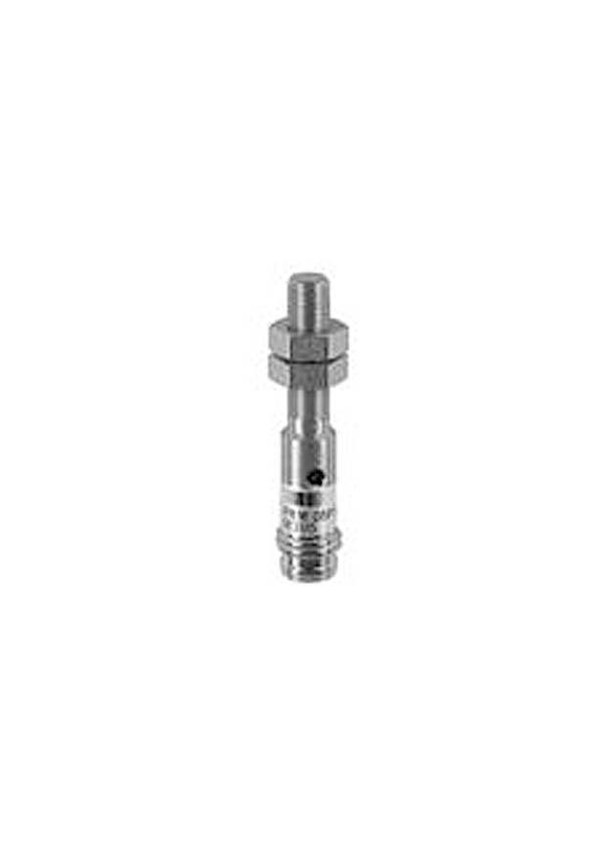

Inductive Proximity Sensor, Subminiature, M5, Flush, 6-30VDC, 1mm Range Sn, PNP, NO, M8 Connector, 5 x 45mm Cylindrical Threaded Stainless Steel Housing, -25 to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer IFRM subminiature inductive proximity switch is a very small inductive sensor for non-contact detection of metal objects in tight installation spaces.
Key Features
- Subminiature housing
- Nominal sensing distance 0.8 mm or 1 mm depending on model
- Flush mounting
- NPN or PNP switching output, NC or NO depending on model
- Supply voltage 6-30 VDC
- Connection via 0.5 m wires, 2 m cable, M5 connector, M8 connector or M8 flylead connector depending on model
- Cylindrical smooth housing in stainless steel; cylindrical threaded housing in stainless steel depending on model
- Operating temperature -25 to +75 °C
- Protection class IP67
Accessories
