IDEC
SA2E-PN3C
Miniature Photoelectric Polarized Retroreflective Sensor, 1.3 to 5m Sensing Range with Sensitivity Adjustment, NPN, Light On/Dark On (Selectable), M8 4-Pin Connector, IP67, 10.8 x 19.5 x 31.5mm (WDH) Excluding LEDs and Controls
$46.08$46.08 -
IDEC
SA2E-PP3-2M
Miniature Photoelectric Polarized Retroreflective Sensor, 1.3 to 5m Sensing Range with Sensitivity Adjustment, PNP, Light On/Dark On (Selectable), 2m Cable, IP67, 10.8 x 19.5 x 31.5mm (WDH) Excluding LEDs and Controls
$37.13$37.13 -
IDEC
SA2E-PP3C
Miniature Photoelectric Polarized Retroreflective Sensor, 1.3 to 5m Sensing Range with Sensitivity Adjustment, PNP, Light On/Dark On (Selectable), M8 4-Pin Connector, IP67, 10.8 x 19.5 x 31.5mm (WDH) Excluding LEDs and Controls
$46.08$46.08 -
IDEC
SA2E-TN3C
Miniature Photoelectric Thru-Beam Sensor, 20m Sensing Range, NPN, Light On/Dark On (Selectable), M8 4-Pin Connector, IP67, 10.8 x 19.5 x 31.5mm (WDH) Excluding LEDs and Controls
$50.54$50.54 -
IDEC
SA2E-TP3-2M
Miniature Photoelectric Thru-Beam Sensor, 20m Sensing Range, PNP, Light On/Dark On (Selectable), 2m Cable, IP67, 10.8 x 19.5 x 31.5mm (WDH) Excluding LEDs and Controls
$44.92$44.92 -
IDEC
SA2E-TP3C
Miniature Photoelectric Thru-Beam Sensor, 20m Sensing Range, PNP, Light On/Dark On (Selectable), M8 4-Pin Connector, IP67, 10.8 x 19.5 x 31.5mm (WDH) Excluding LEDs and Controls
$56.45$56.45 -
$85.14$85.14 -
$95.10$95.10 -
$229.38$229.38 -
$230.74$230.74 -
$342.47$342.47 -
$319.90$319.90
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range

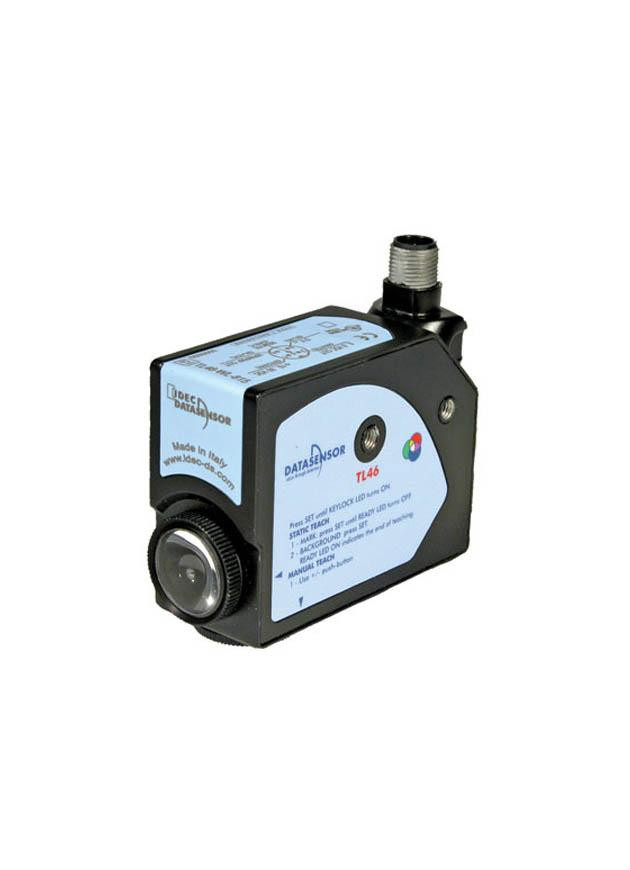

- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
